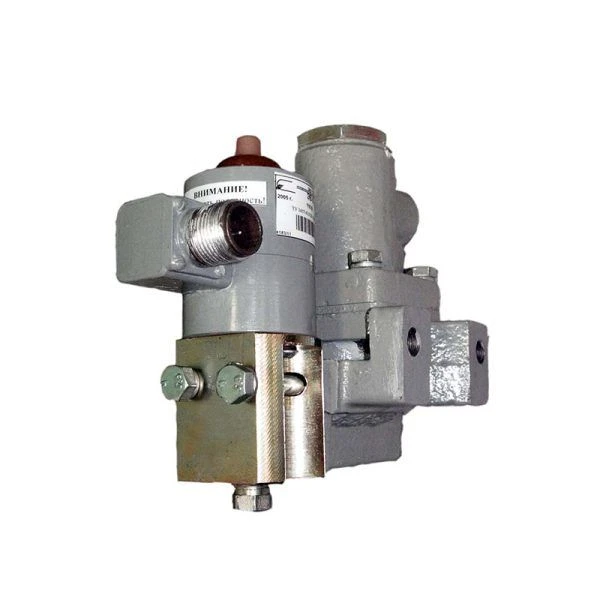

Electric Pneumatic Valve KP-8-02SH for Efficient Compressed Air Delivery

Electropneumatic valve KP-8-02Sh is designed to supply compressed air to sound signals, sandbox nozzles and other devices.
Basic technical data:
Nominal voltage of the valve (DC) (EV-58) , V110
Cross-section of the communication channel of the consumer supply line, not less than, mm110
Working pressure of compressed air in the control line, MPa0,35-1,0
Working pressure of compressed air in the supply line, MPa0,35-0,9
Working pressure of compressed air for leak test, MPa1.0
Overall dimensions, mm157x96x159
Weight, kg ±5%4,5
