Available for Import

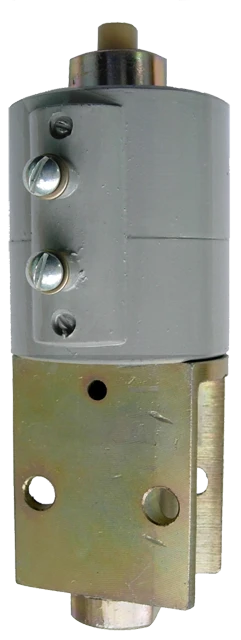

Electric Pneumatic Valve VV-1715 U3 for Remote Control of Pneumatic Actuators
Manufacturer:
ELECTROMAGNIT CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Electropneumatic valve BB-1715 U3 is designed for remote control of pneumatic actuators
Basic technical data:
Rated DC voltage, V75, 110
Nominal pressure of compressed air, MPa0,63
Inlet valve air passage cross-sectional area, sq.mm16
Air passage cross-sectional area of the exhaust valve, sq.mm10
Power consumption, not more than, W17
Valve system stroke, mm2±0,1
Weight, kg ±5%1,26
Basic technical data:
Rated DC voltage, V75, 110
Nominal pressure of compressed air, MPa0,63
Inlet valve air passage cross-sectional area, sq.mm16
Air passage cross-sectional area of the exhaust valve, sq.mm10
Power consumption, not more than, W17
Valve system stroke, mm2±0,1
Weight, kg ±5%1,26
Specifications
Type of product according to PP RF 616
Component spare parts) of railway locomotives, not having independent groupings
Weight
1.26 kg
Type
Electropneumatic valve
Assignment
designed for remote control of pneumatic actuators
