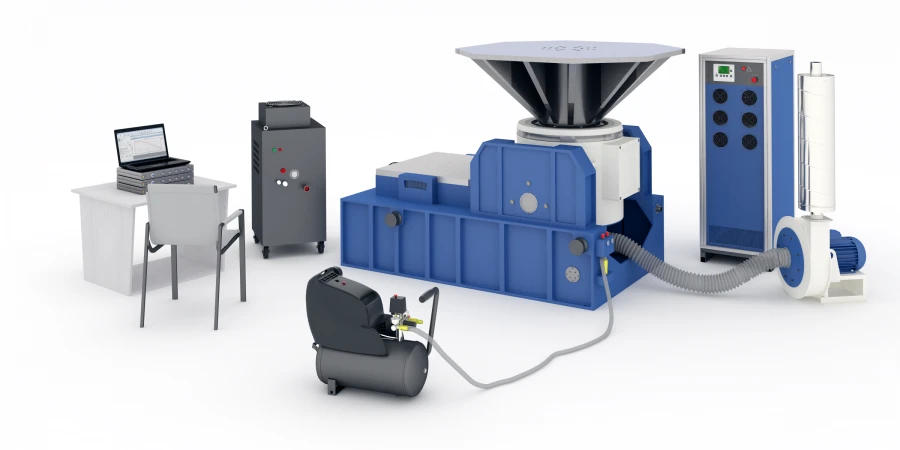

Electrodynamic Vibration Testing System BSV-230-370 GSS for Accurate Vibration Analysis

Electrodynamic vibration test rig Designed for reproduction of sinusoidal vibrations, broadband random vibration, shock loads, and other types of vibration. Design features: table diameter 370 mm., availability of horizontal table (GSS 500, GSS 600, GSS 700, GSS 800, GSS 900, GSS 1000, GSS 1100, GSS 1200), frequency range 5-2300 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 30 kN., mass (maximum) load 500 kg. Advantages: the system of positioning and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
