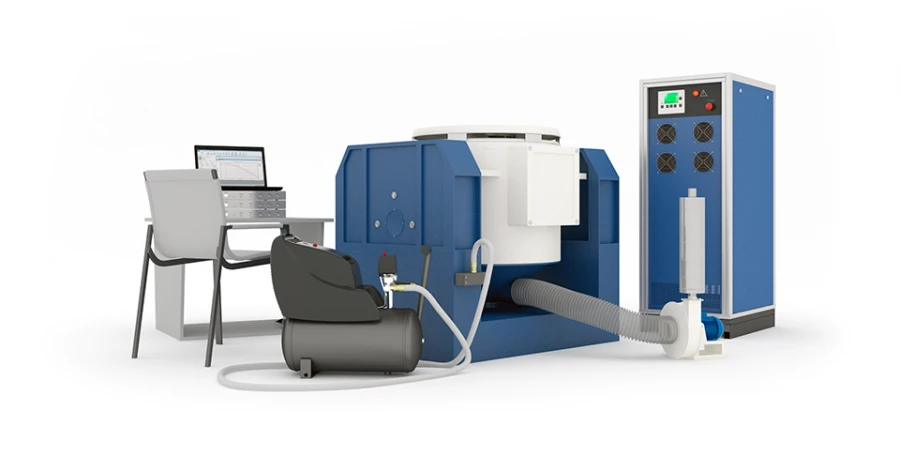

Electrodynamic Vibration Testing System VSV-250-550 for Precision Testing Applications

Electrodynamic vibration test rig Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration. Design features Table diameter 550 mm., frequency range 5-2000 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 595 m/s2, ejection force 50 kN., mass (maximum) load 800 kg. Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
