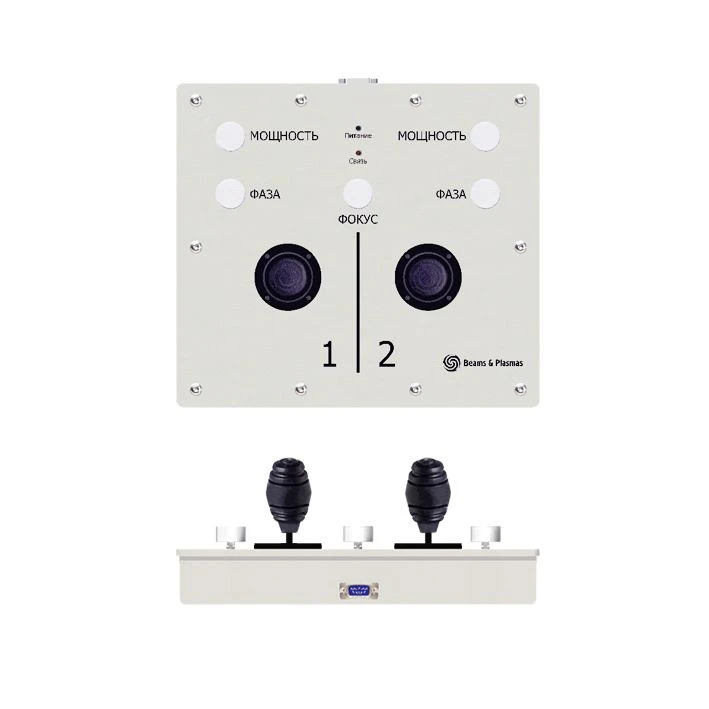

Electronic Beam Evaporator Control Panel (PU ELP) for Precise Beam Positioning

Electrical Interface Devices

Manufacturer:LVT+ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The control panel from the control unit of the electron-beam evaporator is designed to control the position and focusing of the electron beam together with the control unit of the electron beam gun (ELP PU - LCMK.361.00.00.00.00-01). provides control of the electron beam gun for heating of two objects.

The remote control is equipped with: <ul> <li>- RS-485 interface for communication with a computer</li> <li>Modbus RTU protocol control</li> </ul> The device is supplied complete with the Electron Beam Gun Control Unit (ELP BU - LCMK.361.00.00.00.00-01).

*Operational Manual is available on request: LSMC.361.10.00.00.00-01 RE ELECTRONIC-beam gun control panel. It is allowed to deliver the device as a part of the installation without packing. On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Controlling the position and focus of an electron beam in conjunction with an electron beam gun control unit

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts

Type of construction

Stationary

Warranty period

1 year

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage(AC)

24 ±10% V

Power consumption

2,5 W

Interface

RS-485

Data transfer protocol

ModBus RTU

Overall dimensions, (length x width x height)

285x258x106 mm

Weight, not more

3 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
