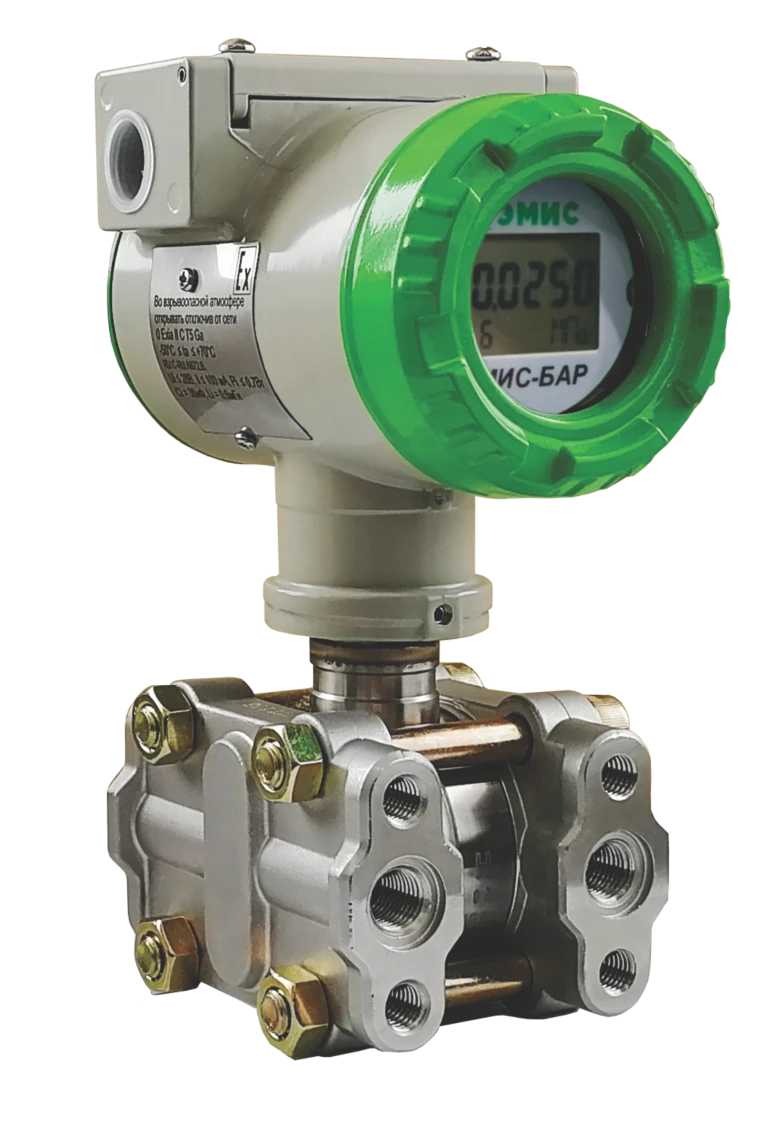

EMIS-BAR Pressure Sensors with 4-20mA Analog and RS-485 Digital Output

Available for Import

EMIS-BAR Pressure Sensors for Continuous Measurement of Various Pressure Types

Flow Measurement Devices

Manufacturer: EMIS OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Pressure sensors EMIS-BAR are designed for continuous measurement and conversion of gauge pressure, absolute pressure, vacuum pressure, hydrostatic and differential pressure (pressure difference) into a unified analogue DC output signal from 4 to 20 mA with a superimposed digital signal in the HART standard, as well as displaying the measured value on the display.
Pressure sensors can be used in systems of automatic monitoring, regulation and control of technological processes in various industries.

Specifications

Mark

EMIS

Application

Pressure sensors can be used in systems of automatic monitoring, regulation and control of technological processes in various industries.

Name

Pressure sensors EMIS-BAR

Execution

EMIS-BAR

Dustproof

IP65, IP66, IP67, IP68

Output signal, mA

4...20

Absolute pressure (YES), upper measuring limit

40 MPa

Overpressure (OD), upper limit of measurement

70 MPa

Overpressure-dissipation (OPD), upper measuring limit

70 MPa

Differential pressure (DP), upper measuring limit

20 MPa

Hydrostatic pressure (HP), upper measuring limit

10 MPa

Basic reduced error

0.074 %

Inspection interval

5 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
