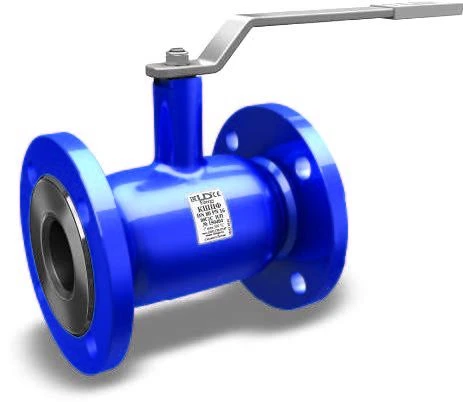

Energy Steel Ball Valve LD KSHCФ DN125/100 for Industrial Flow Control

Energy ball valves belong to pipeline valves for industrial purposes and are designed to shut off the flow of medium transported by the valve. shutting off the flow of the working medium transported in pipelines: <ul> <li>- heat supply systems, cooling systems and industrial facilities</li> <li>Heat energy metering units and heat points (ITP, CSP)</li> <li>housing and communal services</li> </ul>WORKING CONDITIONS Liquid working media: heat network water, specialised heat carriers, including aqueous solutions of ethylene glycol or propylene glycol with concentration up to 50 %, other liquid media against which the valve materials are corrosion-resistant. Steam: up to +150°C (briefly up to +170°C).

Working pressure: up to 40 kgf/cm2. Working medium temperature: from - 60 °? to + 200 °?.

Climatic execution (Ambient temperature): UHL (from - 60 °? to + 60 °? according to GOST 15150).
