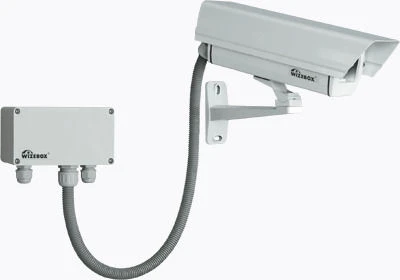

Environmental Protection Thermal Jacket for Cameras - WSS SVS21-24V for Cold Climate Use

Protects the camera with fixed or variable lens from unfavourable environmental influences in cold climates.Type of thermal housing: STREET SET. Series: STREET SET STANDARD. Weight of the complete thermal housing is 1.7kg.

Maximum load on the bracket is 25kg with a safety factor of 2.6. Coating: powder paint, polyester, colour: light grey (RAL7035).Material of the enclosure housing extruded aluminium; die-cast aluminium. Terminal box housing material: polycarbonate.

Glass: special polished glass, without optical distortion. Fixing parts: stainless steel. Material of sealing gaskets of the thermowell: Armlen.

Material of terminal box sealing gaskets: neoprene. Material of cable glands: polyamide. Diameter of cables for connection of the thermal casing 6-10 mm.
