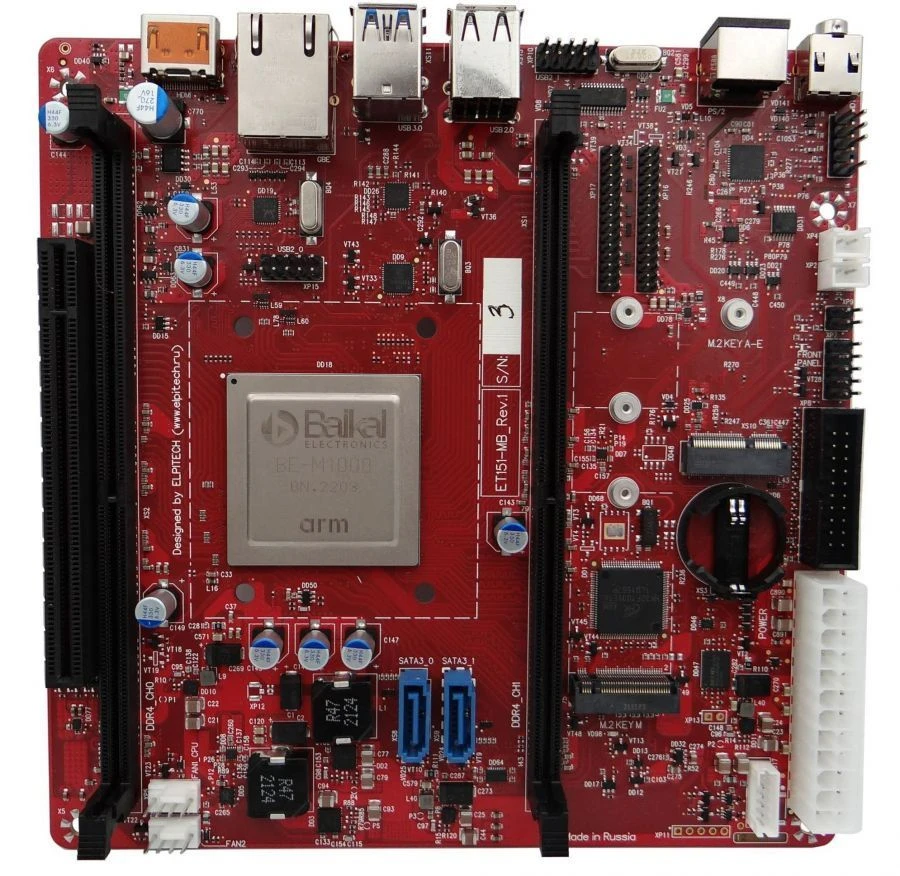

ET151-MB Mini-ITX Motherboard for Baikal Processors - Ideal for Compact PCs
Manufacturer:
ELPITECH LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The ET151-MB motherboard of Mini-ITX form factor is designed to work with Baikal (BE-M1000) processors and is installed in monoblocks, small-format personal computers and automated workstations.
Specifications
Chipset
SNK Baikal-M
CPU connector
Processor integrated into motherboard
Type of RAM
DDR4 2133 (including ECC)
Processor architecture
ARM Cortex A57
Maximum RAM capacity
64
Number of memory slots
2 pcs
Expansion slots
M.2 M key (PCIe 3.0 x 4) for NVME or SATA SSD , M.2 A – E key, PCIe 3.0 x16 slot (x8 lane)
Availability of video connectors
mini-ITX
Number of processor cores
8 pcs
Processor
Baikal BE-M1000
Internal connectors
2 × SATA 3.0 6 Gb/s, stereo speaker connectors, 2 × 4-pin fan connectors with PWM control, RTC battery connector, RTC 24-pin power connector.
Expansion slots
M.2 M key (PCIe 3.0 x 4) for NVME or SATA SSD, PCIe 3.0 x16 slot (x8 lane)
Maximum RAM capacity
Up to 64 GB (up to 2 DIMM modules)
RAM TYPE
DDR4 2133 (including ECC)
Supported OS
Alt, RED OS, Astra Linux
External inputs/outputs on the rear panel
1 × HDMI out, 4 × USB 2.0, 1 × RJ45 1000BASE-T, Headset jack, PS/2, Display Port
Front panel inputs/outputs
HD Audio connector, Front panel connector (buttons, LEDs), 2 × USB 2.0, 2 × USB 3.0
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
