Evaporative Condenser IK ESA-400 for Ammonia Cooling Applications

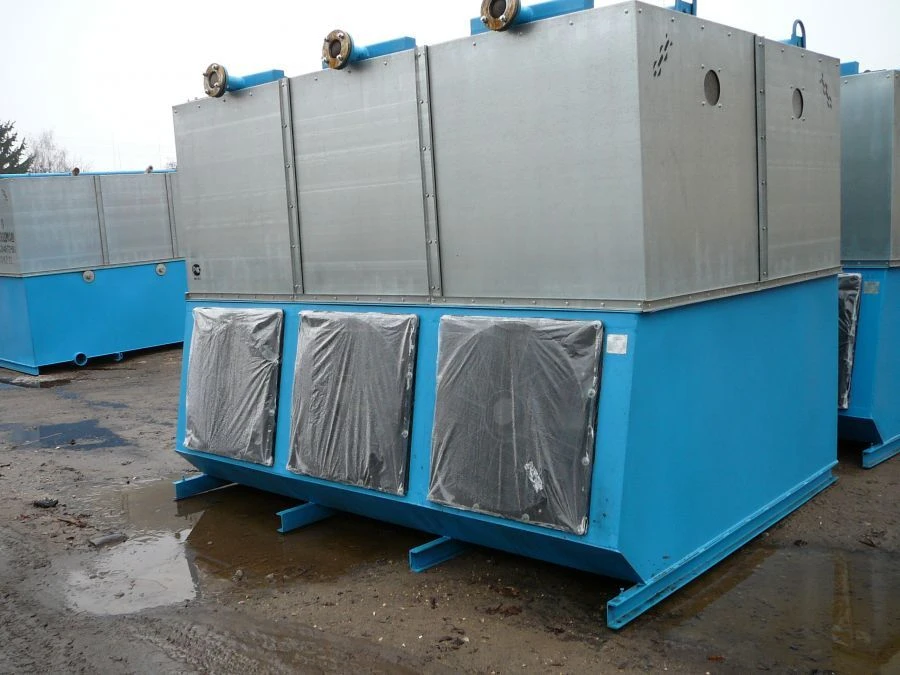

Condenser evaporative brand IR (ESA) (hereinafter referred to as "condenser") is designed for cooling and condensation of ammonia vapours in a refrigeration unit. The condenser is used as a part of ammonia refrigeration units (ARU) at the enterprises on storage and processing of food products and in other technological processes. The condenser body is made in the form of a rigid welded structure and fulfils the function of support for heat-exchange blocks.

In the lower part of the casing there is a spigot for drainage of circulating water. Fans are attached to the inclined walls of the casing. The condenser heat exchange unit consists of a forecondenser and a main section.

The forecondenser is made of pipes with diameter 25x1,5; united by collectors, has plate finning and also fulfils the functions of a droplet eliminator. The main section of the condenser consists of coils made of smooth pipes with diameter 25x1,5; united by collectors. The heat-exchange unit has a protective coating obtained by hot-dip galvanising.
