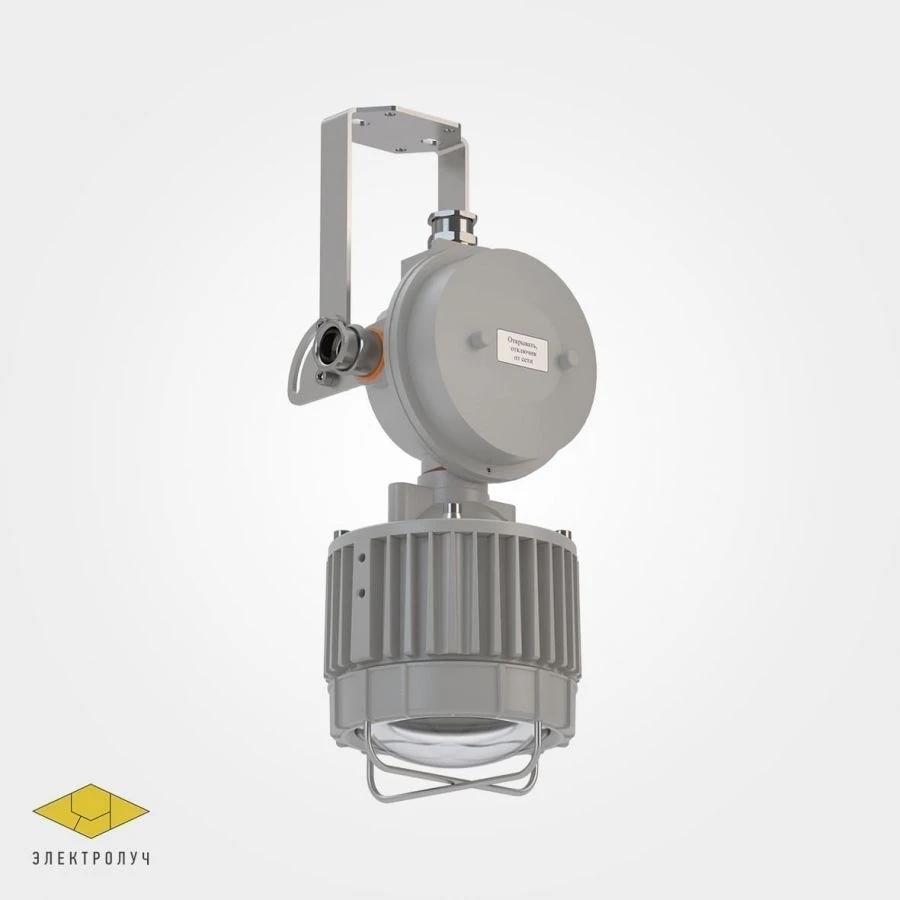

Explosion-Proof LED Light B3G-200AMS-SD-15-40-KR41/KR42/KR43 for Industrial and Outdoor Applications

Advanced LED Lighting

Manufacturer: ELEKTROLUCH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The luminaires are designed for outdoor and indoor lighting of industrial, production facilities, open areas and other areas where the presence of explosive atmospheres is possible. The power of the product 15-40 W. The luminaires are designed for operation in networks with nominal voltage of alternating current - 230, 127, 36 VAC; direct current - 12 VDC.

Mounting method: swivel bracket, 1-3 cable glands. Connection of the luminaire is made through the junction box installed on it. The luminaire has several types of diffusers: polycarbonate, borosilicate glass, borosilicate glass with a protective grid.

The luminaires can be operated in the temperature range from - 60°? to +55°?. Climatic execution and placement category according to GOST15150: U1, UHL1, OM1.

Degree of protection IP: 66, 67, 68.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Operating temperature conditions

-60...55 °C

Input voltage

B1/B8 2100/900 MHz V

Gross weight

4.8...6 kg

Net weight

4.5...5.7 kg

Height

250...420 mm

Width

150 mm

Length

170...440 mm

Degree of protection (IP)

IP66; IP67; IP68

Climatic version

U1; UHL1; OM1

Housing material

Aluminum alloy with magnesium content less than 7.5 %

Correlated color temperature

3000 K

Pulsation factor

1 %

Luminous flux

2000...5100 lm

Protection class against electric current

Grade I

Type of supply current

AC; DC

Power consumption

15...40 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
