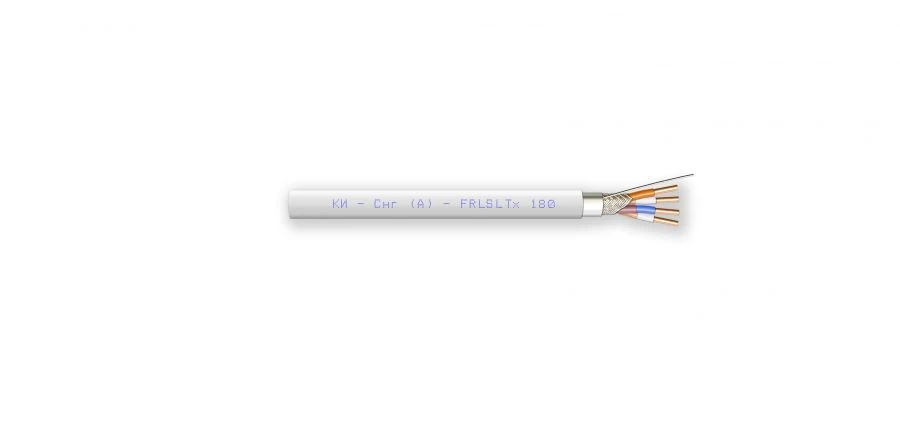

Fire-Resistant Data Transmission Cable KИ-Снг(А)-FRLSLTx 2x2x0.64 mm for Reliable Connectivity
Manufacturer:ORELTEHKABEL LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Fire-resistant cable with twisted pair of conductors of KI-Cng(A)-FRLSLTx 2x2x1,12 mm gradeFire-resistant cable with twisted pair of cores of KI-Cng(A)-FRLSLTx 2x2x0,50 mm gradeFire-resistant cable with twisted pair of conductors of KI-Cng(A)-FRLSLTx 2x2x1,37 mm gradeFire-resistant cable with twisted pair of conductors of KI-Cng(A)-FRLSLTx 2x2x1,75 mm gradeFire-resistant cable with twisted pair of conductors of KI-Cng(A)-FRLSLTx 2x2x1,00 mm grade
Description
Cable of increased fire resistance for data transmission systems with two twisted twisted pairs of copper single-wire conductive cores with nominal diameter 0,64 mm, insulated with fire-resistant organosilicon rubber, winding of cores with PMA film in each pair, with an additional fire-resistant barrier in the form of mica-containing tape over the core, a common screen of laminated aluminium foil and sheathing made of polyvinyl chloride plasticate of reduced fire hazard with low smoke and gas emission and low toxicity of combustion products.
Specifications
Material of conductive cores
Copper
Insulation material of conductive cores
ceramic rubber
Outer sheath material
PVC
Electrical resistance of the core
63 ohm
Electrical insulation resistance
5000000000 ohm
Electrical capacity
-750000000
Test voltage between conductors
700 V
Attenuation factor
0.15
Number of conductive cores
4 pcs
Nominal cross-section of conductive cores
0.35 mm²
Rated AC voltage
0.3 kV
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)
Payment Methods
