Fire-Resistant Twisted Pair Cable KИ-Снг(А)-FRHF 1x2x1.75 mm

Available for Import

Fire-Resistant Twisted Pair Cable for Reliable Data Transmission KИ-Снг(А)-FRHF

Communication Cables & Wires

Manufacturer: ORELTEHKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire-resistant cable with twisted pair of cores of KI-Cng(A)-FRHF brand 1x2x0,80 mm Fire-resistant cable with twisted pair of cores of KI-Sng(A)-FRHF brand 1x2x0,50 mm Fire-resistant cable with twisted pair of cores of KI-Cng(A)-FRHF 1?2?1,00 mm grade Fire-resistant cable with twisted pair of cores KI-Cng(A)-FRHF 1x2x1,37 mm Fire-resistant cable with twisted pair of cores KI-Cng(A)-FRHF 1x2x1,12 mm

Fire-resistant cable with twisted pair of cores of KI-Cng(A)-FRHF 1?2?0,64 mm brand

Description

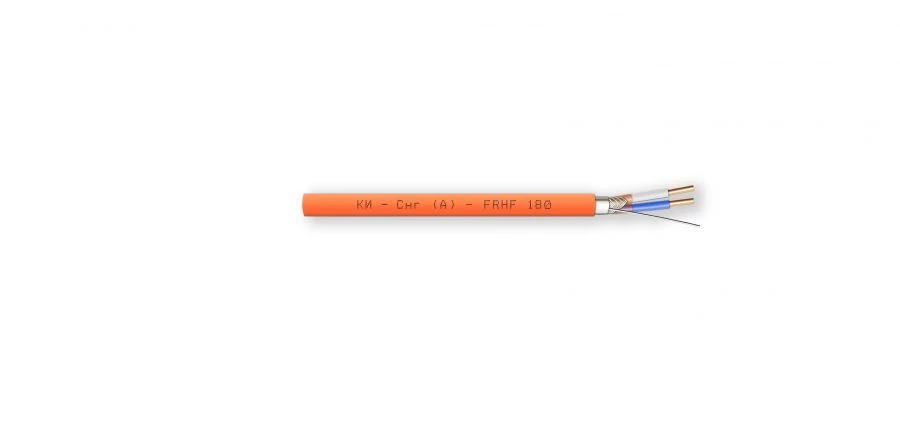

Cable of increased fire resistance for data transmission systems with twisted pair of copper single-wire conductive cores with nominal diameter of 1,75 mm, insulated with fire-resistant organosilicon rubber, winding of cores with PMA film, with additional fire-resistant barrier in the form of mica-containing tape over the core, common screen from laminated aluminium foil and sheath from polymer composition, halogen-free.

Specifications

Material of conductive cores

Copper

Insulation material of conductive cores

ceramic rubber

Outer sheath material

halogen-free

Electrical resistance of the core

8 ohm

Electrical insulation resistance

5000000000 ohm

Electrical capacity

-10000000

Test voltage between conductors

700 V

Attenuation factor

0.05

Number of conductive cores

2 pcs

Nominal cross-section of conductive cores

2.5 mm²

Rated AC voltage

0.3 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
