Fire-Resistant Twisted Pair Cable KIE-Cng(A)-FRHF 2x2x1.37 mm

Available for Import

Fire-Resistant Twisted Pair Cable KIE-Cng(A)-FRHF for Reliable Data Transmission

Communication Cables & Wires

Manufacturer: ORELTEHKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire-resistant cable with twisted pair of conductors of KIE-Cng(A)-FRHF 2x2x1,00 mm grade Fire-resistant cable with twisted pair of cores of KIE-Sng(A)-FRHF brand 2x2x0,50 mm Fire-resistant cable with twisted pair of conductors of KIE-Cng(A)-FRHF 2x2x1,12 mm grade Fire-resistant cable with twisted pair of conductors of KIE-Cng(A)-FRHF 2x2x0,80 mm grade Fire-resistant cable with twisted pair of conductors of KIE-Cng(A)-FRHF 2x2x1,75 mm brand

Fire-resistant cable with twisted pair of conductors of KIE-Cng(A)-FRHF 2x2x0,64 mm mark

Description

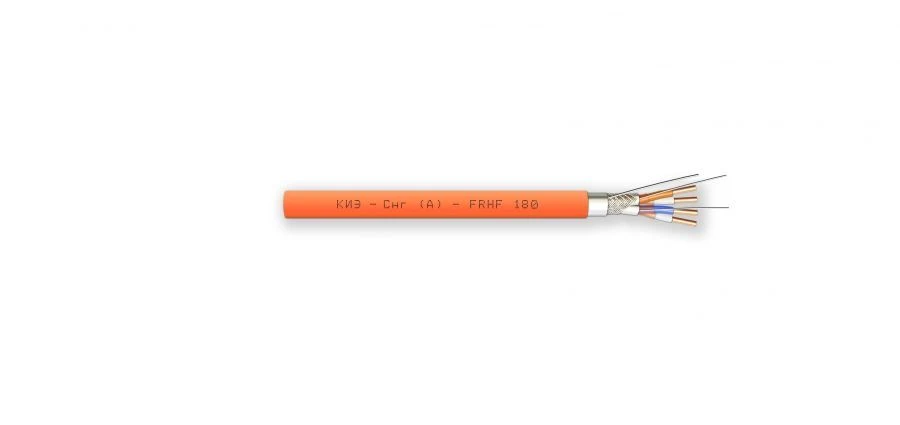

Cable of increased fire resistance for data transmission systems with two twisted twisted pairs of copper single-wire conductive cores with nominal diameter of 1.37 mm, insulated with fire-resistant organosilicon rubber, winding of cores with PMA film in each pair, with separately shielded pairs laminated with aluminium foil, with additional fire-resistant barrier in the form of mica-containing tape over the core, a common shield of laminated aluminium foil and a sheath of halogen-free polymer composition.

Specifications

Nominal cross-section of conductive cores

1.5 mm²

Rated AC voltage

0.3 kV

Material of conductive cores

Copper

Insulation material of conductive cores

ceramic rubber

Outer sheath material

halogen-free

Electrical resistance of the core

12.6 ohm

Electrical insulation resistance

5000000000 ohm

Electrical capacity

-900000000

Test voltage between conductors

700 V

Attenuation factor

0.07

Number of conductive cores

4 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
