Available for Import

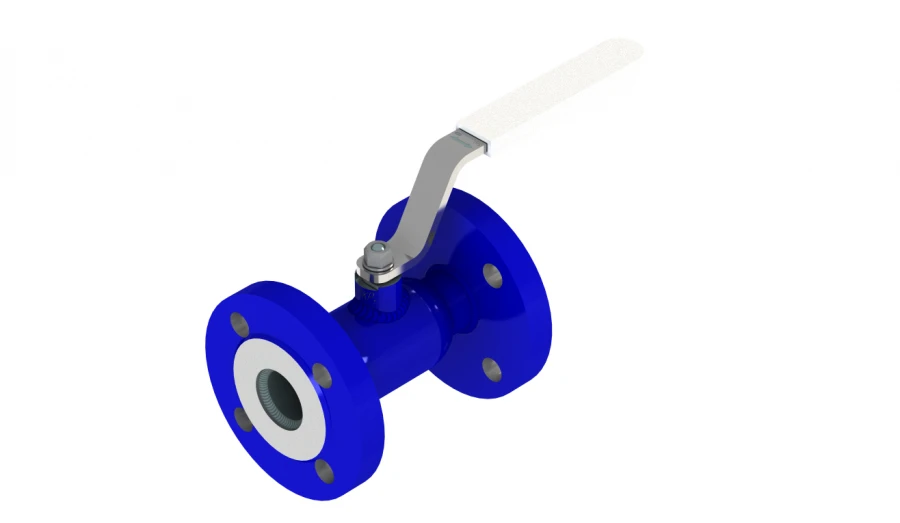

Flanged Full-Welded Ball Valve DN25 for Complete Flow Shutoff
Manufacturer:
LMZ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The all-welded standard bore flanged ball valve is used as a shut-off valve providing complete shut-off of the working medium flow in pipelines transporting water, gas, steam, oil products, as well as other non-aggressive and non-toxic liquids to which the materials of the valve parts are resistant
Specifications
Operating medium
Water, gas, steam
Name
Ball valve all-welded standard bore flanged ball valve Du25, 40 atm.
Climatic version
U1 according to GOST 15150-69 (ambient t° from -45° to +40° C)
Material
20 GOST1050-2013
Joining
Flanged version
Pressure
4 MPa
Nominal diameter
20
Assignment
It is used as a shut-off valve providing complete shut-off of the working medium flow in pipelines transporting water, gas, steam, oil products, as well as other non-aggressive and non-toxic liquids to which the materials of the valve parts are resistant.
nominal passage
DN25
Shutter type
Spherical plug
Housing material
20 GOST1050-2013
Drive pinion torque
Handle force max. 400N
Type of control
Manual drive
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
