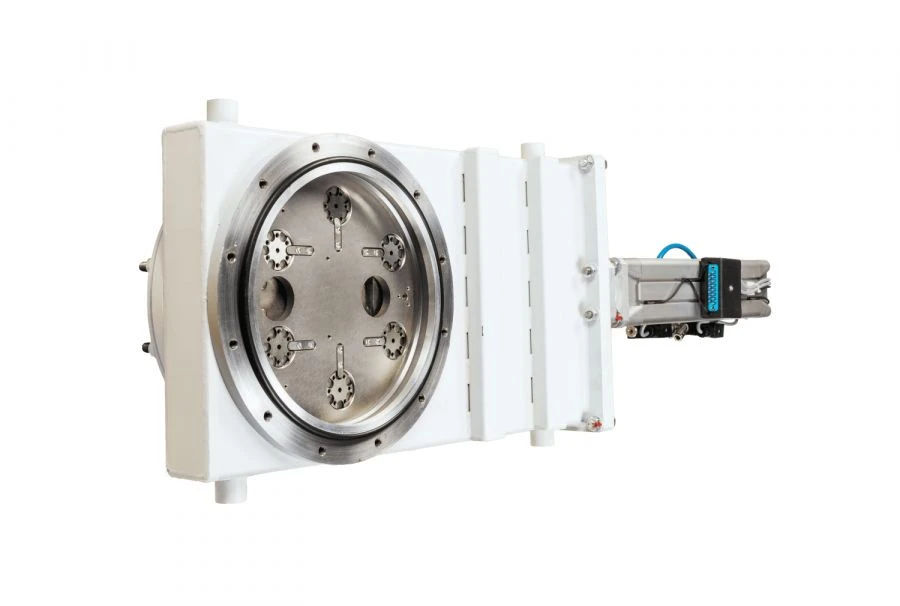

Flat Pneumatic Vacuum Gate Valve ZVPp-250 for Reliable Vacuum Sealing

Pipeline Control Valves

Manufacturer:VACUUMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Flat pneumatic-actuated vacuum gate ZVVPLP-250 with a nominal bore of 250 mm is designed for shutting off vacuum systems in the pressure range from 1x10 -6 to 1,07x10 5 Pa. It is manufactured in climatic version UHL4 according to GOST 15150-69. Operating medium - air and non-aggressive gases. Flat pneumatic-operated vacuum gate valve ZVPLP-250 is not intended for use in fire-explosive production facilities.

Specifications

Conductivity (theoretical) in molecular mode, m3/s, not less than

19.5

Tightness norm, l-Pa/s, not more than

1x10 -7 l - Pa/c

Time of opening (closing) of the gate from the pneumatic actuator, s, not more

Air pressure in pneumatic cylinder, kg s/s2

0,65 (+/- 0,05) kg s/s2

Air flow rate (theoretical), Nl/min not more than

16 (+/-2) Nl/min

Pressure difference in closed position on either side of the flap, Pa, not more than

1,07?10 5

Permissible pressure difference at flap opening, Pa, not more than

1,33?10 3

Nominal bore, mm

250 mm

Overall dimensions, mm, not more

1134x100x497 mm

Weight, kg, not more

75 kg
