Flexible Compensating Device for Heating Networks - SKU, DN 50-1200mm

Flexible Compensating Device for Heating Networks - SKU, Optimal for Thermal Expansion Management

Manufacturer:HORTUM LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

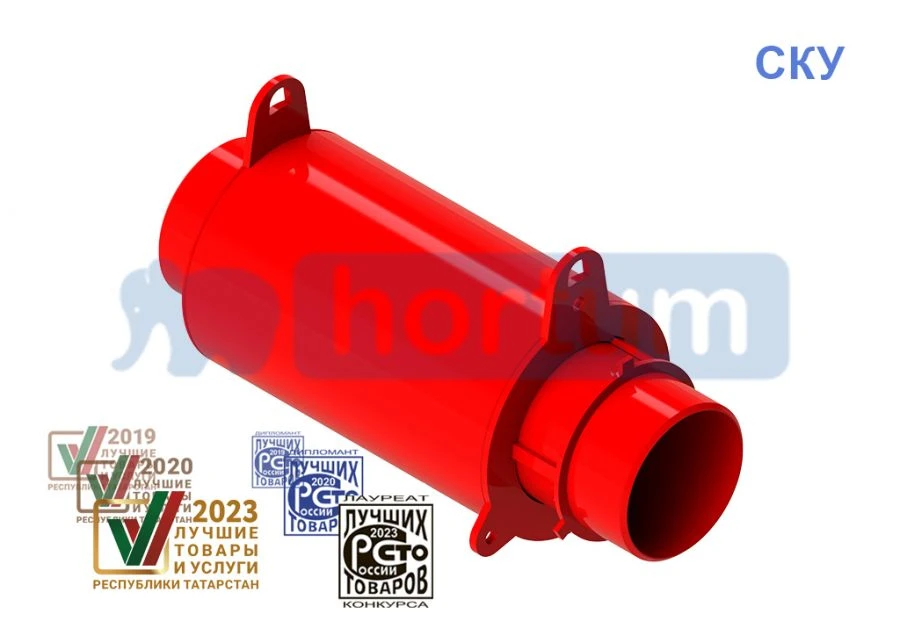

Compensators SKU trade mark hortum are designed to compensate axial displacements of temperature deformations of rectilinear sections of heating mains with different types of laying. They can be used both for underground (ductless) and above-ground laying. Modern reliable design.

Availability of GOST R certificate of conformity, TR CU certificate and EAEC declaration. Guarantee 10 years from the moment of manufacture. THIS PRODUCTION Winner in the contests "The best goods and services of the Republic of Tatarstan" and "100 best goods of Russia" 2019g, 2020g, 2023g.

ATTENTION. Design engineers of the plant help with arrangement of bellows compensators, guide and fixed supports, and also provide technical support at all stages of operation. It is possible to manufacture according to the technical requirements of the customer: increase/decrease of compensating capacity, construction length; pressure; sizes of connection socket, material design and other.

Specifications

Additionally
The product can be equipped with a pre-stretching mechanism in quantity of 1 unit. The product can be manufactured according to customer's technical requirements: increase/decrease of compensating capacity, construction length, pressure, connection sizes.
Connection type
Welded
Type of stroke
Axial
Layers of bellows
2 (multilayer)
Operating medium temperature
Up to +150C
Nominal pressure (RR, PN)
16, 25 Бар
Nominal diameter (DN, mm)
50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 500, 600, 700, 800, 900, 1000, 1200.
