Available for Import
Floating Crawler Snow and Swamp Vehicle TTM-3904TZ for Transportation in Difficult Conditions
Manufacturer:
TRANSPORT LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

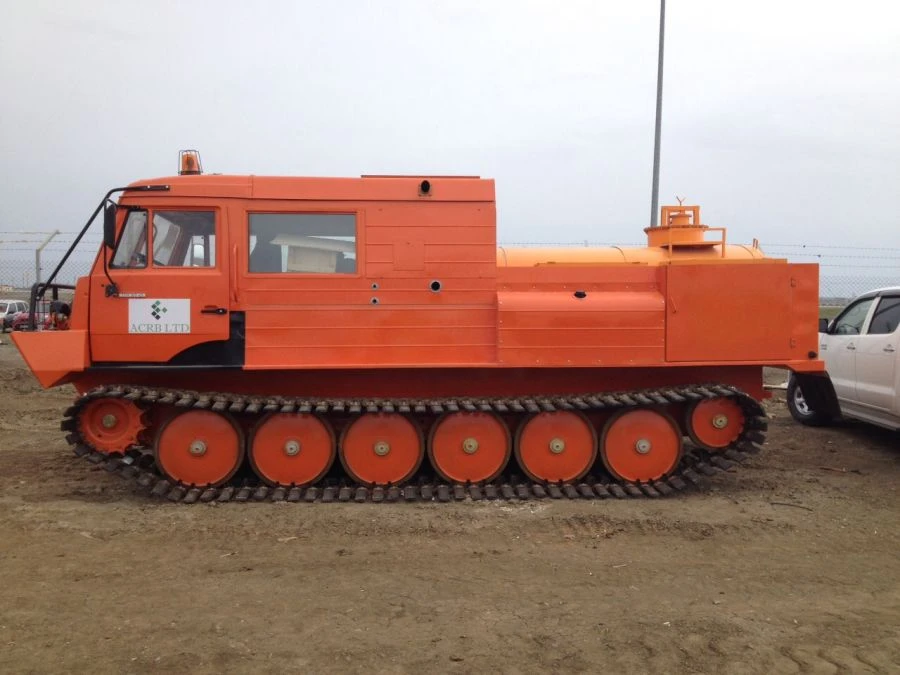

The caterpillar floating snowmobile "Toplivozavazazchik" is made on the basis of TTM-3904GR and equipped with a tank for transportation of dangerous goods with the volume of 1,5 m3 .
It is designed for transportation, temporary storage and refuelling of the vehicle fleet in off-road conditions, including snowfields (without limitation of the snow depth), loose snow (without limitation of the depth of the snow cover).
snow (without limitation of snow depth), loose sands and swamps of all types with overcoming water obstacles afloat.
It is designed for transportation, temporary storage and refuelling of the vehicle fleet in off-road conditions, including snowfields (without limitation of the snow depth), loose snow (without limitation of the depth of the snow cover).
snow (without limitation of snow depth), loose sands and swamps of all types with overcoming water obstacles afloat.
Specifications
Engine displacement
4750
Type
Crawler snowmobile
Number of engine cylinders
4 pcs
Number of seats
6 pcs
Engine type
turbocharged four-stroke diesel engine
Motor power
176.8 hp
Fuel supply system
Fuel injectors, injectors
Brake type
Pedal-operated belt brakes of the slewing gear with hydraulic actuator
Type of engine cooling
Liquid, closed
Equipment
Standard
Type of product according to PP RF 616
Snowmobile means of transportation
Fuel tank
380 l
Mark
TTM-3904TZ
Curb weight
7050 kg
Payload
2000 kg
Average specific pressure on the ground
1.166 MPa
Maximum land speed
54
Speed afloat
5
Maximum lifting angle
30
Maximum roll angle
25
Minimum turning radius
2.2 m
Overall dimensions, length
6480 mm
Overall dimensions, width
2500 mm
Overall dimensions, height
2700 mm
Ground clearance
400 mm
Tank capacity
1500 l
Caterpillar
380 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
