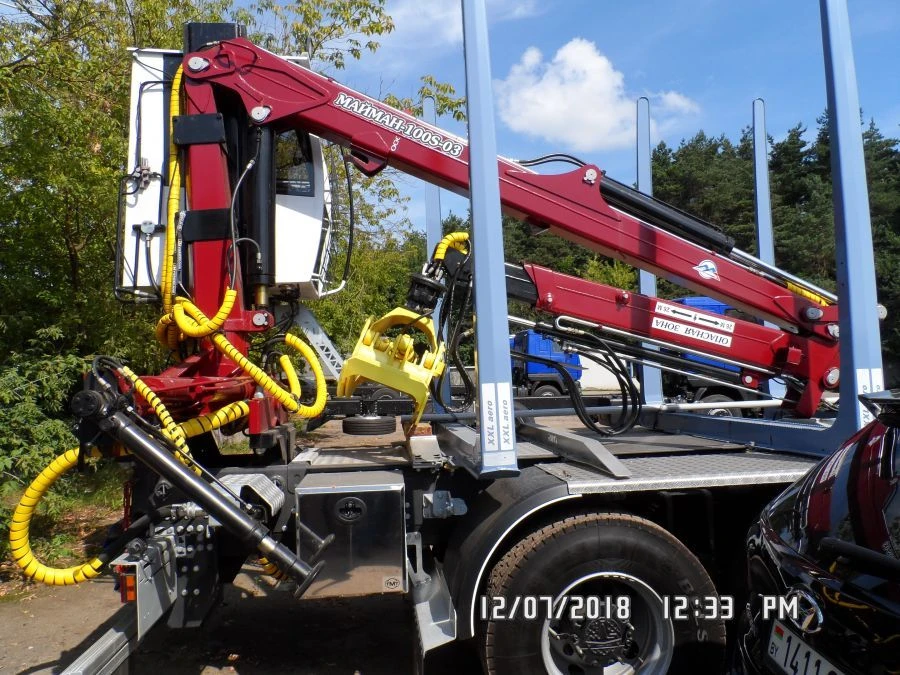

Forest Loader Manipulator MM-100-03 for Heavy Duty Applications

The manipulator is designed for application as a technological equipment on vehicles with load-carrying capacity of 5t and more, on the basis of tractors of traction class 3.....5 and stationary for performance of loading and unloading and other works with the use of load-carrying bodies in forestry, wood processing industry and other branches of economy. Distinctive feature of the manipulator is the increased outreach up to 9 metres and two-slatted turning mechanism. It is made of high-strength steel S500.

The basic equipment includes hydraulic extension of support beams and M-STAR control and safety system. It can be equipped with a double-circuit control system, which allows to increase labour productivity by 1.8 times and a lifting cabin. Supplied with timber grapple or other grapple according to the order.

It can be mounted at the rear on the end of the base chassis frame or at the front behind the cab.
