Frequency Transfer Module MПЧ-1-1.95/2.15-10-N-B/BAvailable for Import

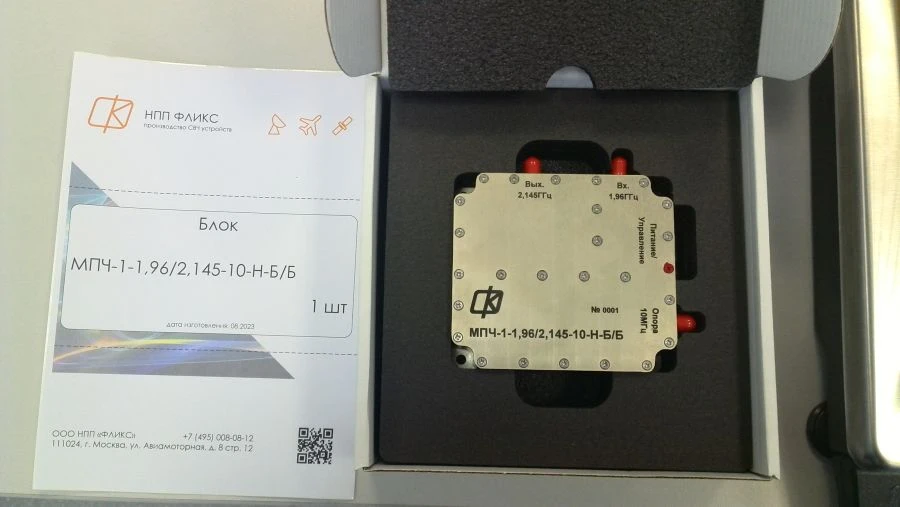

Frequency Transfer Module MПЧ-1-1.95/2.15-10-N-B/B for Signal Amplification

Telecom Equipment Accessories
Manufacturer:FLIX LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The device is designed to transfer the frequency spectrum from L band to S band, with the possibility of adjusting the signal gain up to 30 dB. The filter at the output provides filtering of conversion products, sum and difference of received harmonics, suppression of the mirror channel. The bandwidth is 10 MHz.

Specifications

Input frequency range
1955...1965
Output frequency range
2140...2150
Transmission coefficient (at least)
30
Transmission ratio adjustment range
0...30
Frequency response irregularity (max.)
1
Input VSWR (max.)
1.35
Output VSWR (max.)
1.35
Frequency of the external reference oscillator
10
Power supply voltage
5 V
Weight (max.)
410 year
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Remote monitoring and control
Yes, via DB-9 connector, RS-485 standard

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
