Available for ImportFRLS Low Smoke Power Cable VVG-PNG(A) for Safe Electrical Installations
Manufacturer:LLC "NPO "PZSK"
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

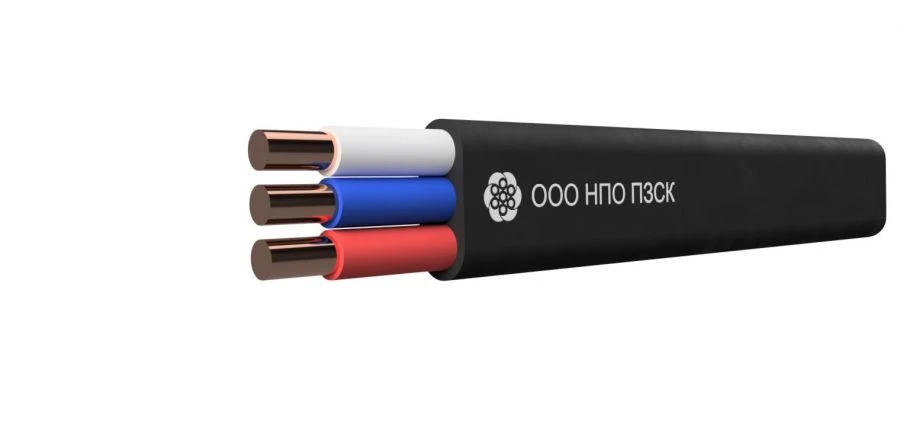

Cable VVG-Png(A)-FRLS power cable with copper conductors, with insulation and outer sheath of polyvinylchloride plasticate of reduced fire hazard, with reduced smoke and gas emission, with parallel stacked insulated cores, designed for the transmission and distribution of electrical energy in electrical installations for rated alternating voltage of 0,6 and 1 kV rated frequency up to 50 Hz.
The cable is manufactured for general industrial application and is intended for stationary laying in the air, in closed rooms, in the ground, in cable collectors for single laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climates.
The cable is manufactured for general industrial application and is intended for stationary laying in the air, in closed rooms, in the ground, in cable collectors for single laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climates.
Specifications
Mark
VVG-Png(A)-LS, VVG-Png(A)-LS-XL, VVG-Png(A)-LS-T
Design
Single-wire round (oc); multiwire round (mc)
Cable shape
Flat
Core material
Copper
Insulation material
Polyvinyl chloride plasticate with reduced fire hazard, with reduced smoke and gas emission
Sheath material
Polyvinyl chloride plasticate with reduced fire hazard, with reduced smoke and gas emission
Climatic version
UHL, T, XL
Rated AC voltage
1 kV
Frequency
SBVVBG
Fire hazard class
P1b.8.2.5.4.
Operating temperature
-50...50 °C
Number of conductive cores
2,3
Filler material
no
Nominal cross-section of conductive cores
10 mm²
Long-term permissible heating temperature of cable cores
70 °C
Availability of reservations
no
Availability of metal screen
no
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
