Available for Import

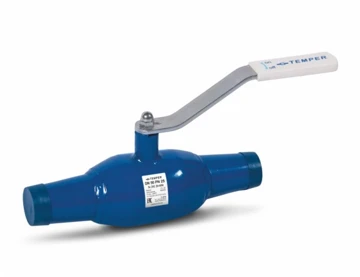

Full Bore Ball Valve 292 for Welding Applications in Diverse Environments
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Connection type:
welded/welded
Work Environment:
Heat network water, oil products, petroleum products, fuels and lubricants, gaseous and other working media, not aggressive for materials of valve parts.
welded/welded
Work Environment:
Heat network water, oil products, petroleum products, fuels and lubricants, gaseous and other working media, not aggressive for materials of valve parts.
Specifications
Airtightness class
Class "A" GOST R54808-2011
Diameter
20 mm
Nominal pressure
40 MPa
Construction length
230 mm
Weight
1.1
Connection type
Welded
Aisle
complete
Flange for mounting the actuator
without flange
Execution
ordinary
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
