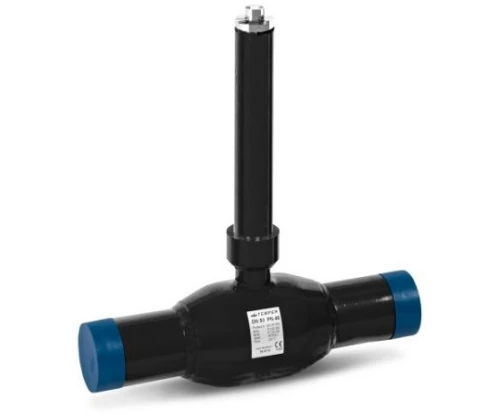

Full-Pass Ball Valve 592 with Extended Stem for Underground Installation
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Connection type:
welded/welded
Used for underground installation.
Working Environment:
heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media that are not aggressive for materials of valve components.
welded/welded
Used for underground installation.
Working Environment:
heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media that are not aggressive for materials of valve components.
Specifications
Airtightness class
Class "A" GOST 9544-2015
Diameter
125 mm
Nominal pressure
25 MPa
Construction length
360 mm
Connection type
Welded
Aisle
complete
Flange for mounting the actuator
without flange
Execution
underground
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
40
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
