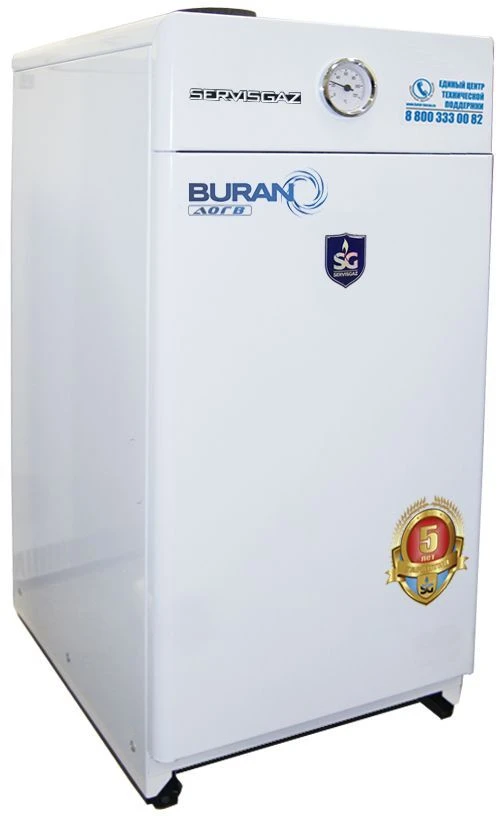

Gas Heating Apparatus AOGV-17.4B (BURAN) for Efficient Home Heating

The gas heating apparatus AOGV-17,4B (BURAN) is manufactured in accordance with TU 4858-003-25331063-2014. The apparatus is designed for heat supply of residential buildings equipped with water heating system with working pressure of the heat carrier up to 0.3 MPa (3.0 kGs/cm²) and temperature up to 95°C with forced or gravity (natural) circulation of the heat carrier with automatic maintenance of the set temperature of the heat carrier. Approximate heated area of 160 sq.

m.; Power 17,4 kW; Efficiency not less than 90%; Control: mechanical; Burner own production SABK; Gas automation 630 EUROSIT or TGV-307; Energy independent; Type of heat exchanger: Cylindrical shape, heat-tube with screw turbulators; Heat exchanger material: steel, wall thickness of the heat exchanger 3 mm; Chimney diameter: 120 mm.
