Guiding Apparatus D800N for Efficient Liquid Flow Control and Pump Staging

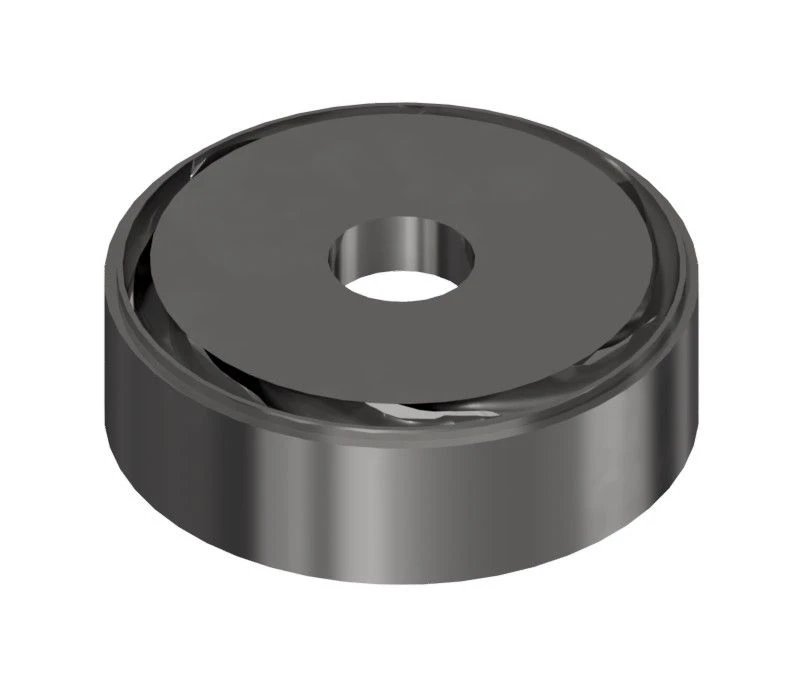

D800N guiding apparatus. Nominal flow rate 800 barrels per day (127 m3/d). Application: Element of the pumping stage, which serves for taking the liquid flow from the impeller, converting the kinetic energy of the liquid flow into potential energy, bringing the liquid flow to the next impeller. Diameter - 88,77 mm, height - 28,185 mm, material - alloyed cast iron Niresist. Weight - 0,321 kg.
