Habitable Abrasive Blasting Chamber Model OKDO for Rust Removal

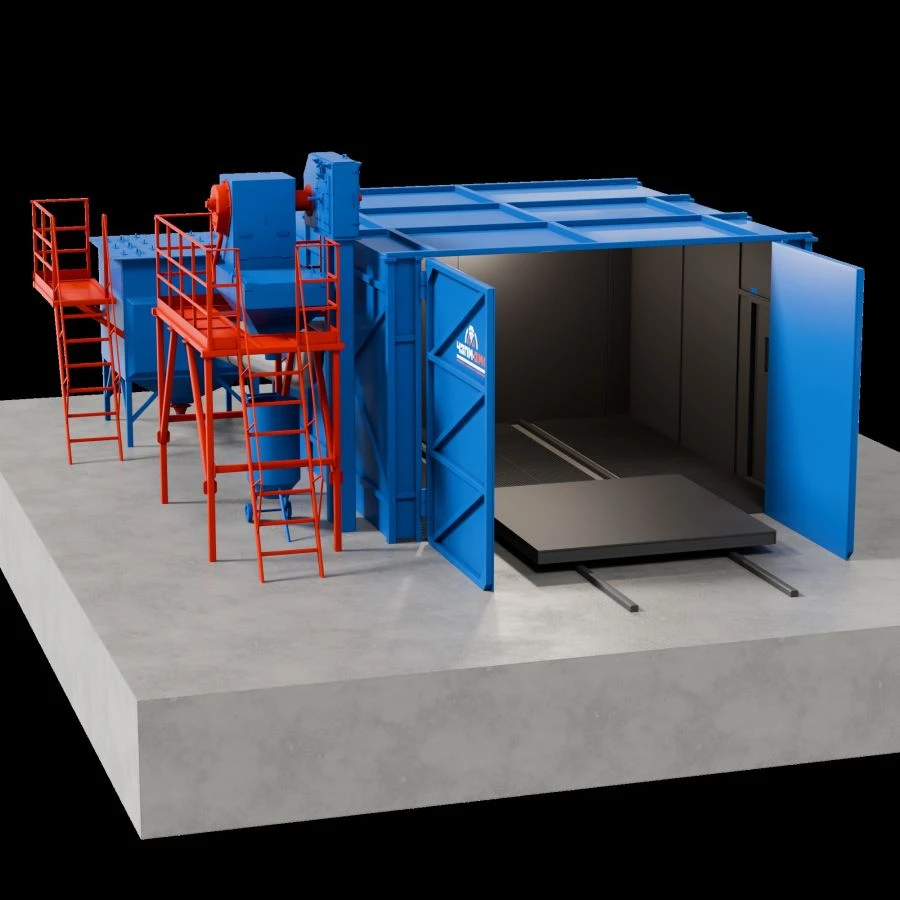

An inhabited blast chamber is designed for cleaning products of different sizes and shapes from rust and scale. The unit consists of a chamber, trolley, shot collection and feeding system, maintenance frame, ventilation system and control cabinet. The frame of the chamber is a frame structure connected by supporting elements fastened to each other.

The chamber body is sheathed with sandwich panels 50mm thick. For protection, the walls and gates of the chamber are covered with rubber curtains (black colour) 2-3mm thick.Working principle: the processed product is placed on a trolley manually or by crane. The trolley is fed into the chamber.

One or several operators blast the product. The shot with scale after the treatment of the product under its own weight falls through the grate deck on the longitudinal scraper conveyor, transporting it to the transverse screw conveyor.
