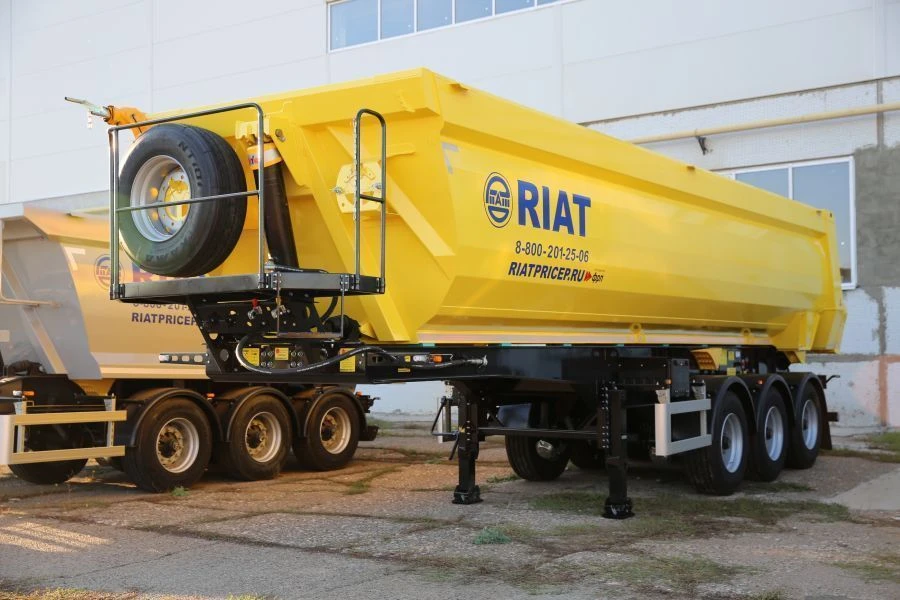

Half-Pipe Dump Semi-Trailer 924900-30H1 for Efficient Cargo Transport

HALF-PIPE tipper trailer. Equipment 924900-30H1. Overall dimensions of the semi-trailer (DxWxH): 9870x2550x3295 mm.

Internal dimensions of the body (DxWxH): 8200x2290x1670 mm. Cargo volume, 30 cubic metres. Mass indicators: Curb weight of the trailer: 8300 kg.

Payload: 30100 kg. Gross weight: 38400 kg. Tandem axle load: 11,400 kg.

Bogie load: 27,000 kg. TMS height: 1200/1300 mm. Unloading direction: Backwards.

Platform lift angle: 45º ... 47º. Track: 2045 mm.

The omega-shaped cross-section of the platform ensures a lower centre of gravity of the loaded semi-trailer compared to other types of HALF-PIPE cross-sections. The tipping axis of the platform on the frame is located with a slight offset from the axis of the suspension pneumatic springs attachment to the frame. This increases the stability of the semi-trailer when unloading.

Increased service life of the semitrailer metal structure due to the use of high-strength steels.
