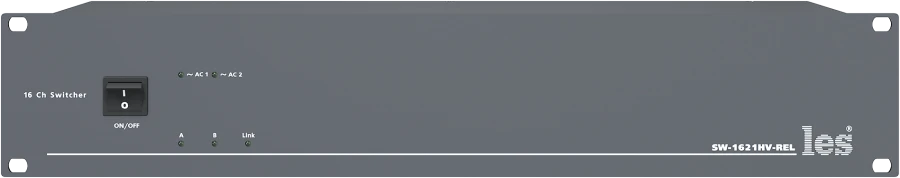

HD/SD-SDI and DVB-ASI Relay Switch, Model SW-1621HV-REL

Available for Import

HD/SD-SDI and DVB-ASI Relay Switch for Signal Management - SW-1621HV-REL

Standalone Communication Devices

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The switchboard of reserve ("changover"), is 16 independent relay switches 2x1 in one case. The switch supports HD/SD-SDI, DVB-ASI and CVBS signals.- Signal switching is asynchronous and without state memory.- In case of network power failure, "Com" outputs are connected to "A" inputs.- The switch is controlled remotely via Ethernet or GPI signals.- The device has two power supplies.

Specifications

Ethernet connector type

RJ-45

Supported Ethernet type

100 Base-TX/10 Base-T

Maximum allowable voltage in the path

5 V

Transmission coefficient of the path in the range 0 - 1.5 GHz, not worse

-0.5

Overall dimensions (W-W-H)

123 mm

Operating temperature range

5...40 °C

Transient attenuation between inputs "A" and "B" in the range 0 - 1.5 GHz, not less than

Number of power supplies

Power consumption

10 W

Power supply voltage

100...240 V

GPI input signal type

level

GP connector type

DB-9 female

Number of GPI inputs

8 (or 6)

Input switching torque

asynchronous

Wave impedance of the path

75 ohm

Type of signal connectors

BNC

Number of outputs per channel

Number of inputs per channel

Number of independent switches (channels) in one enclosure

Supported signal format

HD/SD-SDI, DVB-ASI, CVBS

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
