Heat Meter STK MARS NEO-15 P 0.6 RS for Effective Energy Monitoring

Communication Devices Hub

Manufacturer:DECAST M LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Heat meter STK MARS NEO-15 O 0,6 RS

Description

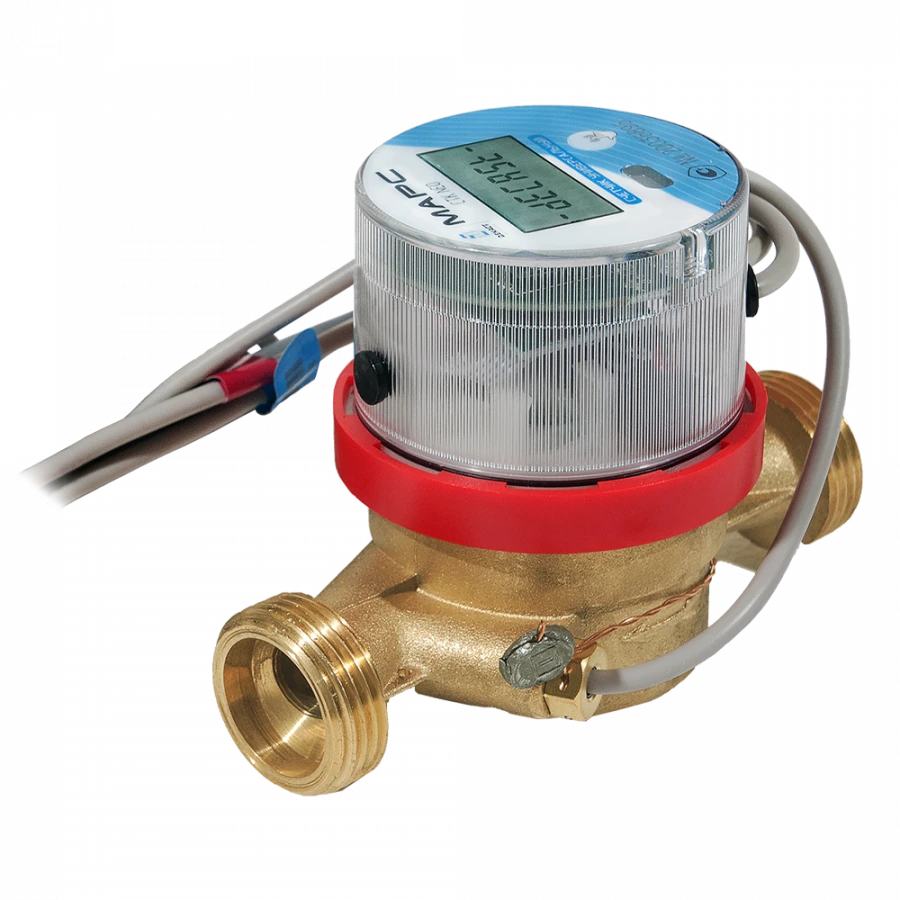

The heat meter is designed to measure heat energy, volume and temperature of the coolant in flats and cottages. Asynchronous interface RS-485 according to EIA/TIA-485 standard. It is used to connect the meter to systems of remote reading of readings dispatching ASCUE systems, etc. The power supply element for the device is a built-in battery.

Specifications

Transmission speed

9600

Transmission settings (bit, parity, stop bits)

8n1

Maximum number of MARS NEO STCs in one 256 RS-485 network segment

Polyvinyl chloride plasticate, halogen-free composition pcs

Diameter of nominal passage, DN

15 mm

Minimum flow rate, Qmin

0.012

Nominal flow rate, Qn

0.6

Inspection interval

6 year

Mounting length L

110 mm

Maximum working pressure

1.6 MPa

Place of installation

feed pipe

Interfaces

RS-485, 2 pulse inputs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
