Available for Import

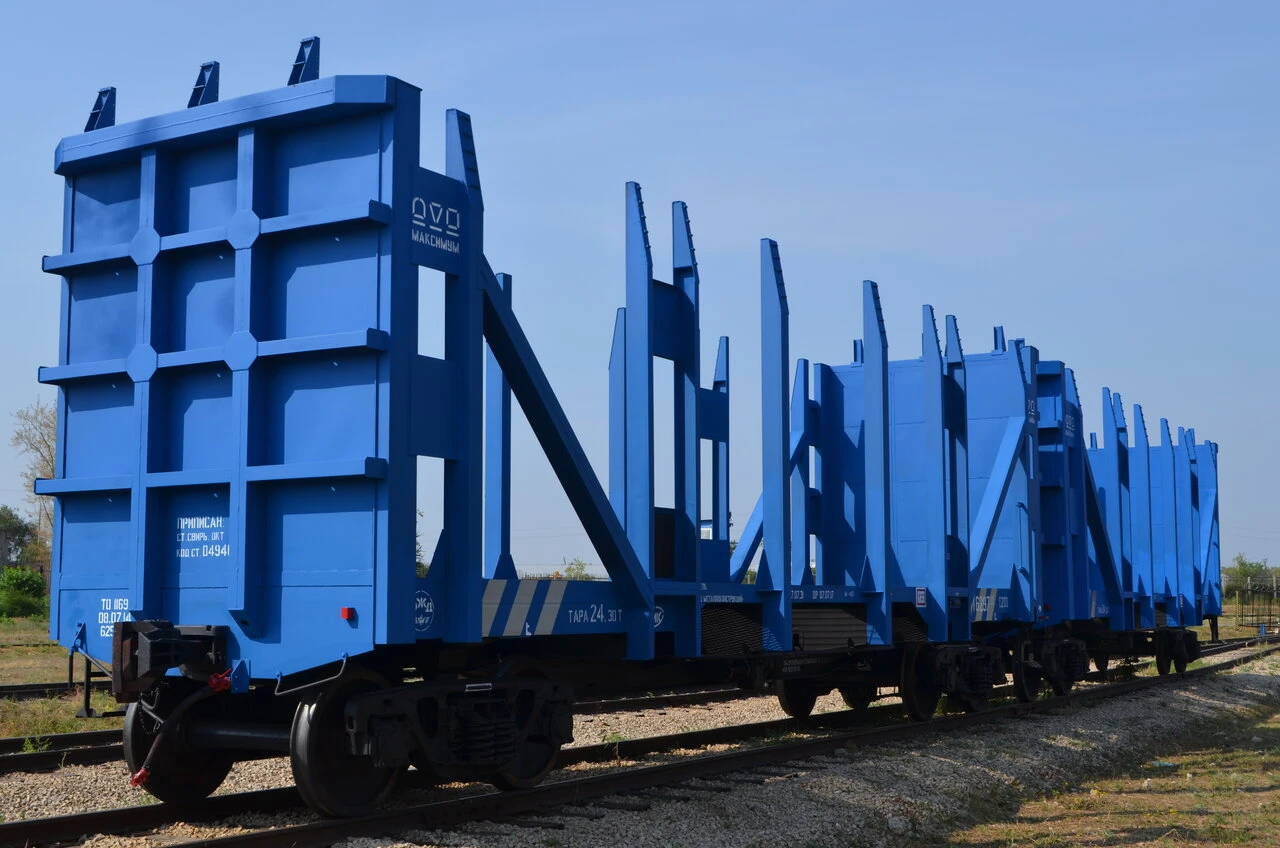

Heavy-Duty Platform for Transporting Timber, Containers, and Pipes - Model 13-9744-02
Manufacturer:
TRANSMAШ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The platform is designed for transporting:
- steel pipes with diameter from 350 to 1200 mm with and without polyethylene coating;
- one container type 1AAA, 1AAA, 1A, 1A, 1AX and two containers type 1SS, 1S, 1SX according to GOST R 53350;
- timber with length from 3 to 13.2 metres.
- steel pipes with diameter from 350 to 1200 mm with and without polyethylene coating;
- one container type 1AAA, 1AAA, 1A, 1A, 1AX and two containers type 1SS, 1S, 1SX according to GOST R 53350;
- timber with length from 3 to 13.2 metres.
Specifications
Type of product according to PP RF 616
Railroad type flat cars
Dimension according to GOST 9238
1-? pcs
Tare weight
26.8 t
Payload
67 t
Base
9720 mm
Length along the coupling axes of couplers
14620 mm
Car length along frame end beams
13400 mm
Width along frame side beams
3100 mm
Track width
1520 mm
Design speed
120
Wheel set axle load on track
23.45 t
Height of end walls
2890 mm
Number of longitudinal struts
B1/B8 2100/900 MHz pcs
Number of end walls
2 pcs
Number of hinged fitting stops
8 pcs
Floor availability
1 pcs
Assigned service life
32 year
Assigned service life until first overhaul
17 year
Assigned service life until the first scheduled (depot) repair
3 year
Height of longitudinal columns
2640 mm
Height from the UHGR to the horizontal axis of the coupler
1080 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
