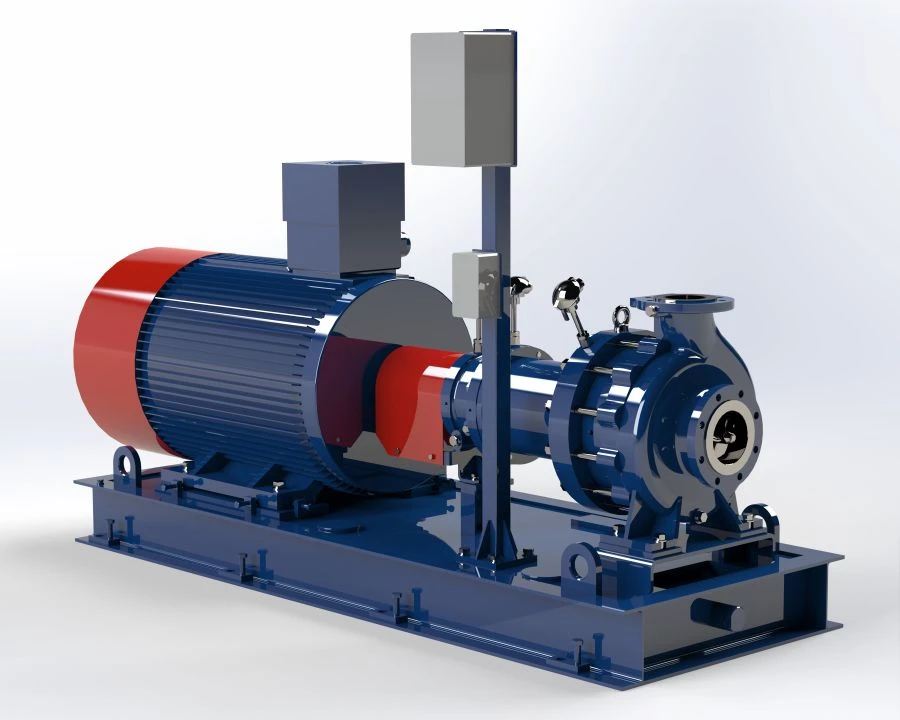

GH Type Hermetic Pump for Neutral and Chemical Liquids (0.5 to 1000 m³/h)

Pumps of GC type are designed for pumping neutral and chemically active and containing harmful substances (all hazard classes according to GOST 12.1.007-76) liquids, including liquefied gases, the vapours of which can form explosive mixtures with air. Pumps according to TDFA.062443.300TU correspond to the following parameters: delivery: from 0.5 to 1000 m3 /h; head: from 8 to 1000 metres; explosion protection of pump/unit - II Gb c IIA/IIB/IIC X (when ordered); rated power of electric motor not more than 1500 kW; motor shaft speed (synchronous) from 1000 to 4500 rpm; supply voltage 220/380 V.
