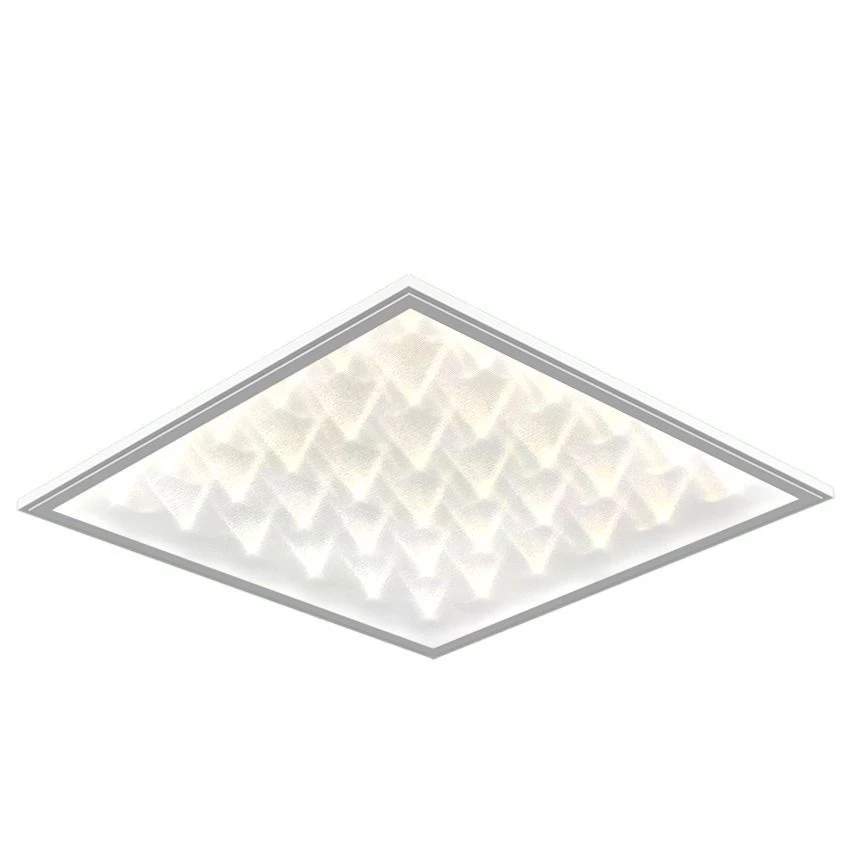

High Armstrong LED Light Fixture for High Ceilings, 20-100W

High Armstrong LED Light Fixture for High Ceilings and Accent Lighting

Manufacturer:DIOLIGHT LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Series HIGH Armstrong - LED luminaires of modular type for lighting objects with high ceiling systems Armstrong, Grilliato, as well as lighting shops, where you need accent lighting retail rows. By default they are equipped with LEDs of cold white luminescence (5000K), on customer's request LEDs of neutral-white or warm white luminescence can be installed. When developing a series of luminaires was applied technology of heat dissipation, which allowed to raise the efficiency of lighting devices as a whole (taking into account all possible losses) up to 160 lm / W. Luminaires with discrete adjustment of the angle of inclination of the luminaire, which allows optimal targeting of the luminaire. To create the necessary light environment luminaires can be equipped with secondary optics, or a reflector, eliminating the effect of glare, which allows you to form the necessary consumer distribution of light flux..

Specifications

Type of lamps (LED, incandescent, fluorescent)
ice
Type of supply current
AC
Upper operating temperature value
SBVVBG °C
IK code
8
Type of explosion protection
no
Type of emergency luminaire
Option
Net weight
2...10 kg
Light distribution class
?
Color temperature (K)
2700...5700 K
Weight
2...10 kg
Optical element material
Polycarbonate
Climatic execution (according to GOST 15150-69)
UHL1
Type of diffuser
Polycarbonate
Color rendering index (CRI)
70...90
Housing material
Aluminum
Width
587...593 mm
Length
587...593 mm
Luminous flux, lm
2000...16000 lm
Height
98 mm
Correlating color temperature (CCT)
2700...5700 K
Power consumption, W
20...100 W
PROTECTION CLASS AGAINST ELECTRIC CURRENT
1
Luminaire height
98 mm
Luminaire width
587...593 mm
Luminaire length
587...593 mm
Ripple factor, less than or equal to
2 %
Color rendering index (Ra), greater than or equal to
80-90
Correl. color. temp. (CPT)
2700...5700 K
Power consumption
10...100 W
Width
593 mm
Color rendering index (Ra), greater than or equal to
80...90
Color rendering index (Ra)
80...90
diffuser
Polycarbonate
Power Consumption.
10...100 W
Correl. color. temperature
2700...5700 K
Color rendering index (Ra).
80...90
Brightness limitation category
limited
Mounting type
Built-in

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
