High-Mobility Snow and Swamp Vehicle TTM-3904UB for Drilling Applications

Snow Terrain Vehicles

Manufacturer: TRANSPORT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

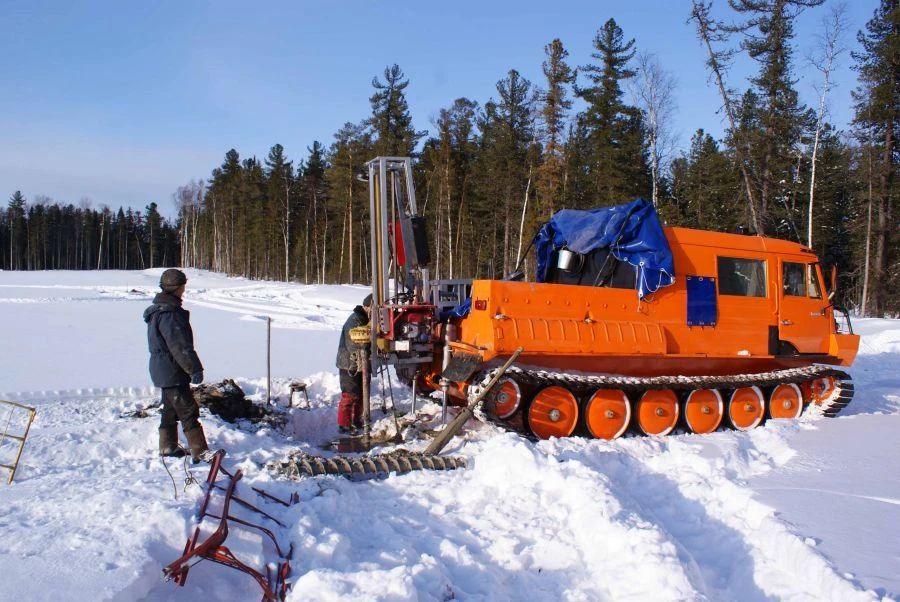

The machine with drilling equipment is made on the basis of a cargo snowmobile and is a floating machine of high cross-country ability, equipped with a 6-seat cabin and a tilted cargo body. Drilling rig UBShM 1-20 or drilling hydromechanised rig UBGM-1 mounted in the rear part of the vehicle is designed for drilling geophysical and structural prospecting wells for oil and gas, exploration of deposits of solid minerals, construction materials and underground water, engineering-geological surveys, as well as drilling of water intake and explosion wells in snowy off-road conditions, overwatered and swampy terrain.

Specifications

Engine displacement

4750

Type

Crawler snowmobile

Number of engine cylinders

4 pcs

Number of seats

6 pcs

Engine type

turbocharged four-stroke diesel engine

Motor power

176.8 hp

Fuel supply system

Fuel injectors, injectors

Brake type

Pedal-operated belt brakes of the slewing gear with hydraulic actuator

Type of engine cooling

Liquid, closed

Equipment

Standard

Type of product according to PP RF 616

Snowmobile means of transportation

Fuel tank

380 l

Mark

TTM-3904UB

Curb weight

6800 kg

Payload

2500 kg

Average specific pressure on the ground

0.174 MPa

Maximum land speed

Speed afloat

Maximum lifting angle

Maximum roll angle

Minimum turning radius

2.2 m

Overall dimensions, length

7220 mm

Overall dimensions, width

2500 mm

Overall dimensions, height

2780 mm

Ground clearance

400 mm

Caterpillar

380 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
