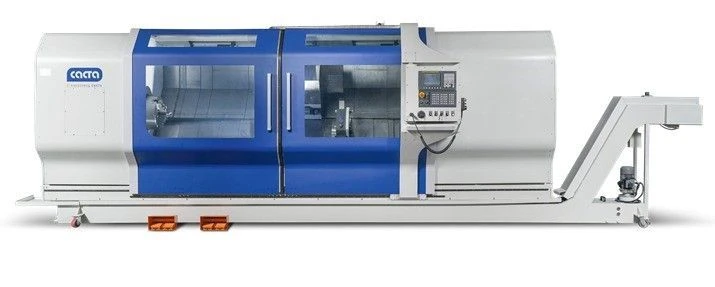

High-Speed CNC Lathe Machine NT500C20F4 for Precision Machining

CNC Metal Lathes

Manufacturer:SASTA PJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

CNC Lathe Model NT500C30F3 CNC lathe model NT500C30F4 CNC lathe model NT500C10F4 CNC lathe model NT500C20F3 CNC lathe model NT500C10F3

Description

- The NT500C20F4 CNC lathe combines high-speed machining capability, high positioning accuracy and repeatability, and high torque.
The machine can be equipped with a counterspindle and Y-axis.
All of these features expand the machine's technological capabilities, allowing for greater flexibility in the fulfilment of tasks
45° tilted, solid grey cast iron bed with high damping characteristics.
Depending on the selected layout, the machine can be equipped with rolling or sliding guideways. Regardless of the type of guideways, the machine is equipped with ground ball screws with accuracy class C3, guaranteeing high positioning accuracy and repeatability of the machined dimensions.
Backlash-free roller guideways guarantee high dynamics over a long service life.
Wide prismatic guideways guarantee high rigidity over a long service life

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Machine weight, not more

10000 kg

Height

2300 mm

Width

2500 mm

Length

4825 mm

Repeatability

0.007 mm

Largest diameter of the workpiece to be mounted above the bed

800 mm

Largest diameter of the workpiece to be machined above the slide

600 mm

X-axis travel (transverse movement of the slide)

305 mm

Z-axis travel (longitudinal movement of the slide)

2000 mm

C-axis travel (spindle rotation)

±360 ????.(??????????????)

Tailstock movement

1800 mm

V-axis travel (lunette)* (optional)

1600 mm

Y* axis travel (optional)

±55

Working feeds in X, Z axes

10 (6* opc) m/min

Accelerated movement in X, Z axes

24 (10* opc) m/min

Working feed rates in axes V, W

2 m/min

Working feeds in the Y axis

10 m/min

Working feeds in the C-axis

Type of encoders on linear axes X, Z

Motor encoder

Sensor type on circular axis C

External circular sensor

Circular sensor accuracy

±5 sec

Positioning accuracy

±0.01 mm

Maximum spindle speed

3000

Maximum torque

550/800 (2000/3100* optional) Nm

Main engine power

22/26 kW

Spindle end

?11

Chuck diameter

?250 (?315*, ?400* optional) mm

Chuck type

Hydraulic

Spindle bore diameter

?102 (?55* opc) mm

Diameter of the spindle bore for the bar

?90 (?42* optional) mm

Diameter of the counter spindle bore

55 mm

Bar hole diameter

42 mm

Highest rotational speed

5000

Spindle face to DIN55026

Motor power/30 min

22/26 kW

Highest torque

633/800 Nm

Attachment of the turret tool

VDI50 (VDI60* optional)

Number of tool slots

B1/B8 2100/900 MHz pcs

Maximum rotational speed of the drive tool

4000

Moving the tailstock quill

150 mm

Diameter of tailstock quill

150 mm

Tailstock quill taper

Morse 6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
