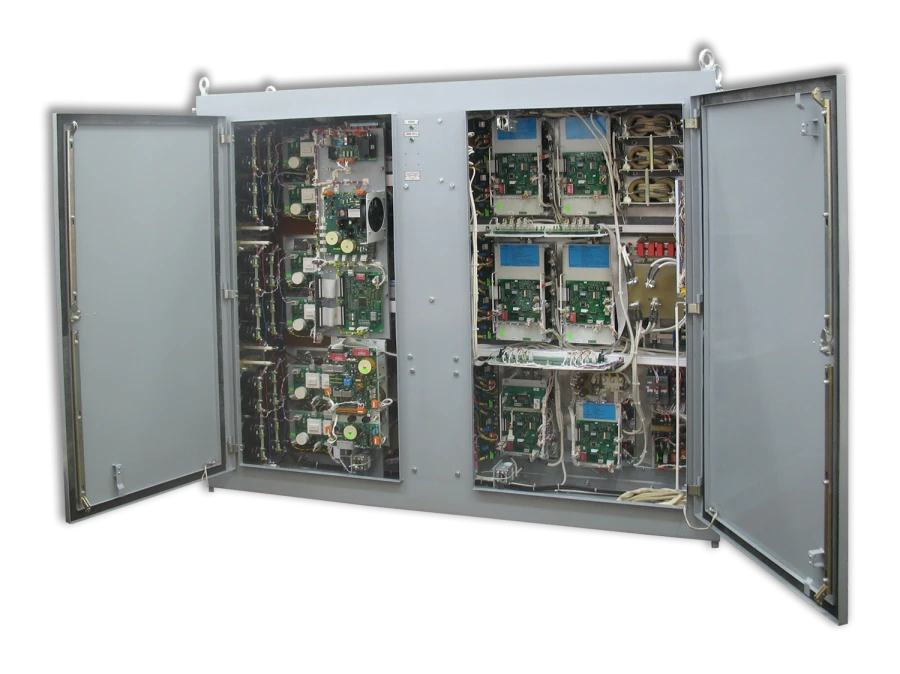

High Voltage Static Converter PVS-65-02-U1 for Restaurant Car Power Supply

Static Power Converters

Manufacturer: GAMEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

PVS-65-02-U1 is designed for power supply of consumers and battery charging of 2-storey dining car with centralised power supply. PVS provides transformation of voltage of high-voltage train main 3000V DC or 3000V AC frequency 50Hz, as well as external AC network 3x380V 50Hz (with deviations of network voltage up to 10% of the nominal value) into DC and AC voltages of the required value. Long-term output power of the PVS-65-02-U1 converter is 55 kW, hourly - 65 kW. Total efficiency factor of PVS at rated voltage 3000V is not less than 90%. There are 63 units in operation.

Specifications

Overall dimensions (DxWxH)

2082x531x1400 mm

Number of phases (compressor motor supply channel)

3 pcs

Frequency (compressor motor supply channel)

SBVVBG

Number of channels (compressor motor supply)

Output rated power (compressor motor supply channel)

Output voltage (compressor motor supply channel)

220 V

Maximum current (compressor motor feed)

39 A

Output power (Compressor motor supply channel)

Output line voltage (power supply channel for electric cooker, combi steamer, 1- and 3-phase AC loads)

220 V

Number of phases (Channel 1 supply of electric cooker, combi steamer, 1- and 3-phase AC loads)

3 pcs

Frequency (power supply channel for electric cooker, combi steamer, 1- and 3-phase AC loads)

SBVVBG

Maximum current (power channel for electric cooker, combi steamer, 1-phase and 3-phase AC loads)

52 A

Output power (power supply channel of electric cooker, combi steamer, 1- and 3-phase AC loads)

Shape of output voltage (power supply channel of electric cooker, combi steamer, 1- and 3-phase AC loads)

sinusoidal

Output Voltage (Battery Charging Channel and DC Consumer Power Supply)

110 V

Maximum current (battery charging channel and DC power supply)

140A, including 28A battery charging current

Output continuous power at power supply from VHF (channel of charging of AB and power supply of DC consumers)

20 kW

Output continuous power under 3x380V, 50Hz mains supply (channel for charging the battery and supplying DC consumers)

B1/B8 2100/900 MHz kW

Number of channels (power supply channel for electric cooker, combi steamer, 1- and 3-phase AC loads)

2 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
