Hydraulic Cylinder GЦ 70х40-630.4.11.2.000 for Heavy-Duty Applications

Hydraulic Cylinders

Manufacturer: OGM Plant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Hydraulic cylinder piston

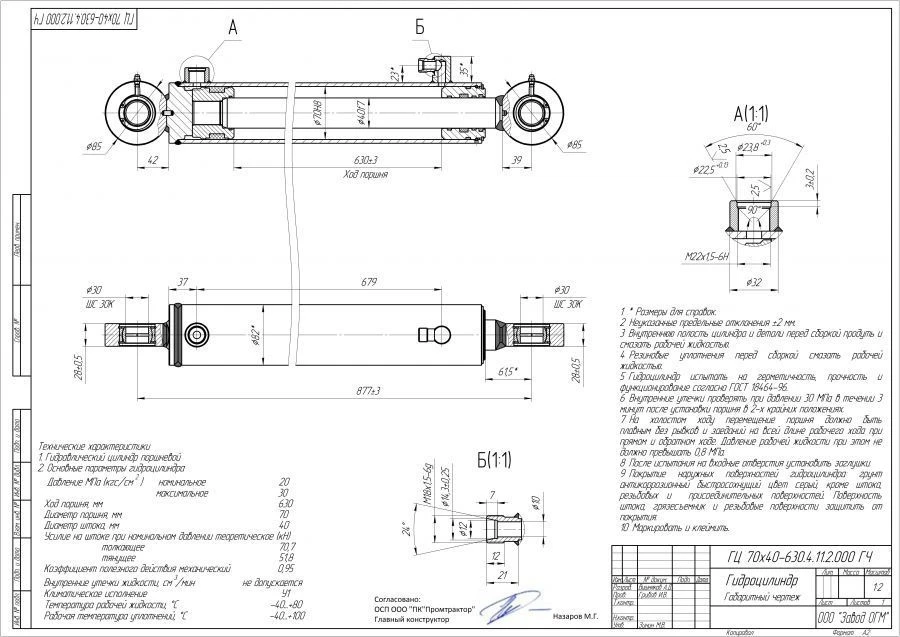

Main parameters of the hydraulic cylinder

Pressure MPa (kgf/cm ) nominal 20 maximum 30 Piston stroke, mm 630 Piston diameter, mm 70 Stem diameter, mm 40 Theoretical force on the rod at nominal pressure (kN) pushing 70.7 pulling 51.8 Mechanical efficiency 0.95 Internal leakage of liquid, cm/min is not allowed Climatic execution U1 Working fluid temperature,? -40...+80 Working temperature of seals,? -40...+100.

Specifications

Assignment

?? 70?40-630.4.11.2.000

Stem diameter

40 mm

Hydraulic cylinder stroke

630 mm

Diameter

70 mm

Pressure

20...30 MPa
