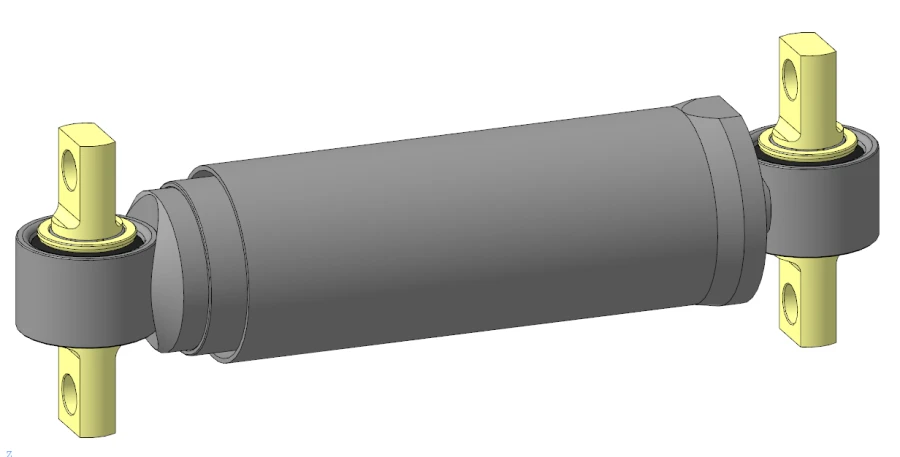

Hydraulic Damper UGD 240/5200/4900/01 for Automotive Suspension System

Railway Vehicle Parts

Manufacturer:OKVEY LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Hydraulic dampers are designed for installation on rolling stock in the bogie spring suspension system in order to ensure standardised indicators of smooth running and impact on the railway track.

Specifications

Type of product according to PP RF 616

Locomotives

Dimension between trunnion centers in compressed position

405 mm

Dimension between trunnion centers in tensile position

635 mm

Dimension between holes in trunnions for mounting bolts

108 mm

Diameter of the hole in the trunnion for the mounting bolts

14 mm

Outer diameter of the casing

84 mm

Total weight, not less

9.4 kg

Outer diameter of the housing

74 mm

Full piston stroke

240 mm
