Hydraulic Damper UGM 145 for Suspension Systems

Available for Import

Hydraulic Damper UGM 145 for Improved Ride Quality in Suspension Systems

Railway Vehicle Parts

Manufacturer:OKVEY LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

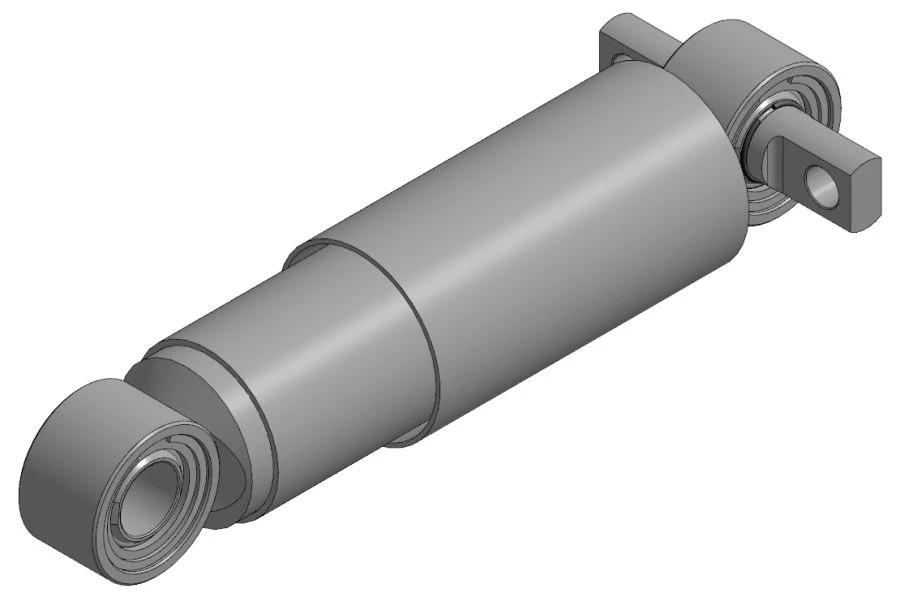

Hydraulic dampers are designed for installation on rolling stock in the bogie spring suspension system in order to ensure standardised indicators of smooth running and impact on the railway track.

Specifications

Type of product according to PP RF 616

Locomotives

Dimension between the centers of the lugs in the compressed position of the damper

322 mm

Dimension between the centers of the lugs in the stretched position of the damper

467 mm

Full piston stroke

145 mm

Dimension between holes in trunnion for mounting bolts

100 mm

Diameter of the hole in the trunnion for the mounting bolts

17 mm

Total weight, not less

7.5 kg

Outer diameter of the housing

74 mm

Outer diameter of the casing

84 mm
