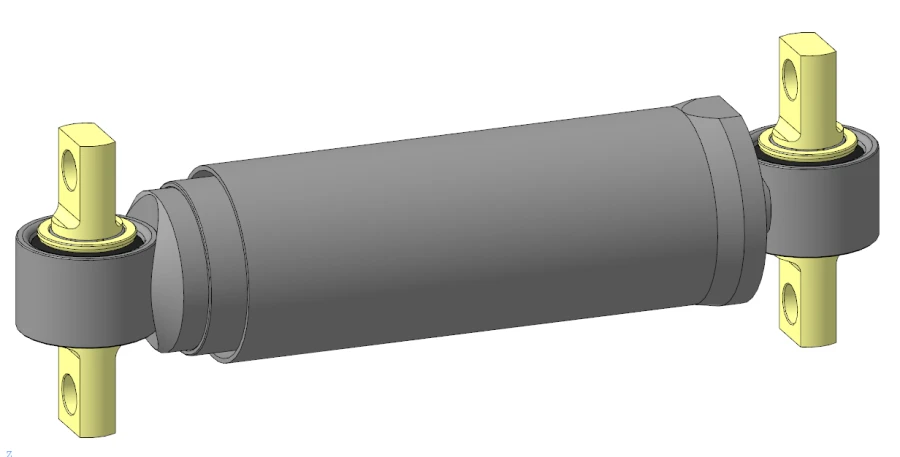

Hydraulic Damper UGP 155x50/13 for Suspension Systems

Available for Import

Hydraulic Damper UGP 155x50/13 for Enhanced Suspension Performance

Railway Vehicle Parts

Manufacturer:OKVEY LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Hydraulic damper UHP 180x50/13

Description

Hydraulic dampers are designed for installation on rolling stock in the bogie spring suspension system in order to ensure standardised indicators of smooth running and impact on the railway track.

Specifications

Type of product according to PP RF 616

Locomotives

Total weight, not less

9 kg

Full piston stroke

One link up to 16GB 64-bit DDR4-2400 MHz with ECC support; 16GB (for CPC1309-01); 8GB (for CPC1309-02) mm

Distance between holes in the mounting trunnions

100 mm

Thickness of the flat part of the mounting studs

16 mm

Diameter of holes in mounting studs

17 mm

Outer diameter of the housing

74 mm

Outer diameter of the outer casing

84 mm

Distance between mounting axes in extended position

478 mm

Distance between mounting axes in the compressed position of the DG

323 mm

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
