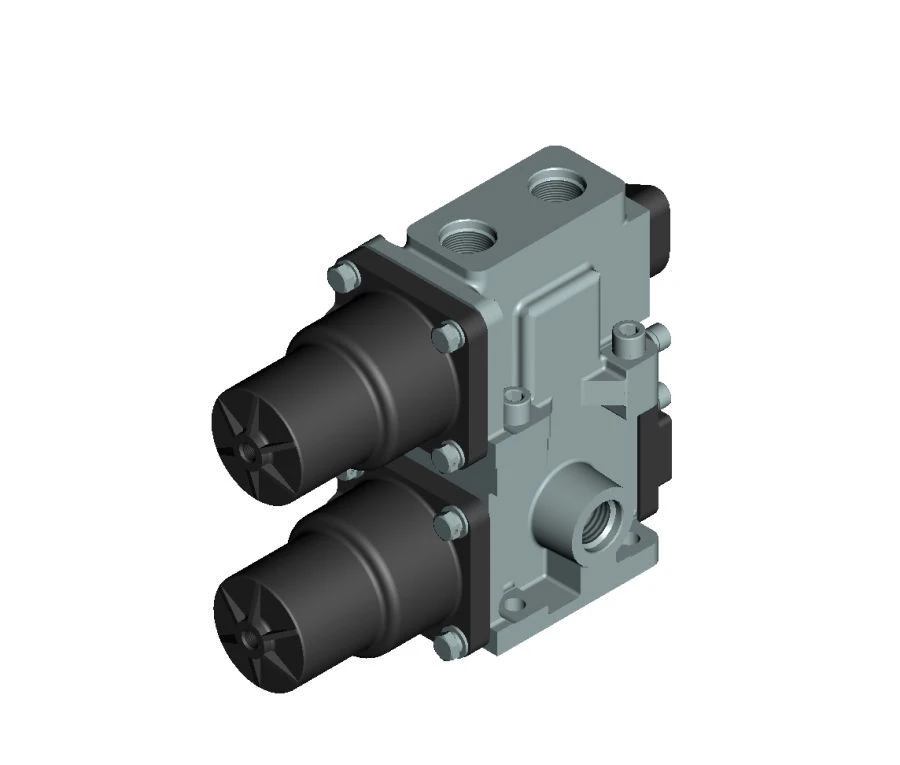

Hydraulic Distributor Block for Dump Truck Mechanisms - 6520-8607200 A

Spool Valve Blocks

Manufacturer:SARATOVDIZELAPPARAT LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The block of hydraulic valves is designed to control the flow of working fluid in the hydraulic system of tipping mechanisms of dump truck and trailer, as well as to protect the hydraulic system from pressure exceeding the set value.

Specifications

nominal passage

14 mm

Nominal discharge pressure

16 MPa

Maximum discharge pressure

20 MPa

Safety relief valve actuation pressure

20 MPa

Pneumatic cylinder control pressure

0.6 MPa

Control rod chamber volume

95.5

Volume of the piston control chamber

26.3

Nominal operating fluid flow rate

80 l

Maximum working fluid flow rate

144 l

Maximum internal leakage at rated pressure

240

Working fluid in summer

industrial oil I-20A GOST 20799; oil MGE-46V TU 38-0013-47-83

Working fluid in winter

industrial oil I-12A GOST 20799; oil VMGZ TU 38-101-479-86

Ambient temperature

(-40)...+50 °C

Weight

12.53 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
