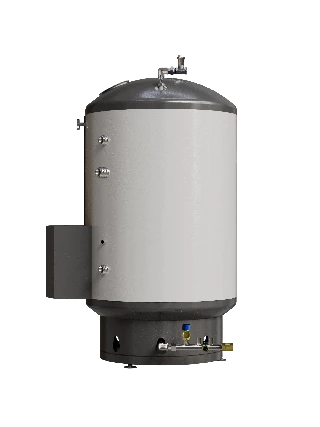

Indirect Heating Water Heater GOPPO BKN Amur-600 for Efficient Hot Water Production

Non-Electric Water Heaters

Manufacturer: NZTEO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The indirect water heater is designed to produce hot water from heat carriers. Placement of the tubular coil in the lower part of the tank allows to ensure uniform heating of all the liquid in the water heater. The volume and capacity of water heaters is selected individually according to the current hot water consumption in the maximum hour of consumption and daily consumption, as well as taking into account the limitations on the allocated electrical power and dimensions (width of the doorway and height in the room). Since 2015, GOPPO brand has been producing industrial storage water heaters from 200 litres to 10m3, for working pressures up to 6bar/ up to 10bar/ up to 16bar/ up to 20bar. The capacity can vary from 11kW to 500kW. Also there is a possibility of manufacturing according to individual specifications.

Specifications

Material of construction

Stainless steel AISI304

Width

860 mm

Height

1720 mm

Depth

1070 mm

Inlet/outlet connection size

Outer thread G1 1/2"

Connection size of the recirculation port

Male thread G1"

Thermal insulation material

Mineral wool, thickness 30mm

Material of outer casing

Galvanized steel with polymer coating

Power of heating elements

6...300 kW

Working pressure

6...16

Scope

600 литр

Connection dimension of the heat exchanger

Outer thread G1 1/4"

Heat exchanger area

3.0m2 (66kW)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
