Industrial Inverter MIG Welding Machine 500W - ROSWELD

Available for Import

Industrial Inverter MIG Welding Machine 500W for Manual and Semi-Automatic Welding

Electric Welding Machines

Manufacturer:ZTI LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Industrial inverter welding machine with welding parameters software for semi-automatic welding with solid electrode of carbon and high-alloy steels, aluminium alloys at currents up to 500A. Supports modes with controlled current form, pulse modes, combined welding modes. It has the function of manual arc welding with piece electrode (MMA), argon-arc welding on direct current (TIG DC).

It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40 ... +40 ° C, efficiency 96%. The control tact of welding arc parameters is 6,6 ?s.

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

25 A

Rated welding current

500 A

Operating voltage

380 V

Weight

48.7 kg

Mains frequency

50...60

Manual arc welding

20-500 ?

argon-arc welding

3-500 ?

Semi-automatic welding

25-500 ?

No-load voltage

93 V

Maximum power consumption, kW

22.5

Length

700 mm

Width

630 mm

Dimensions

700x630x240 mm

Mark

rosweld

Equipment

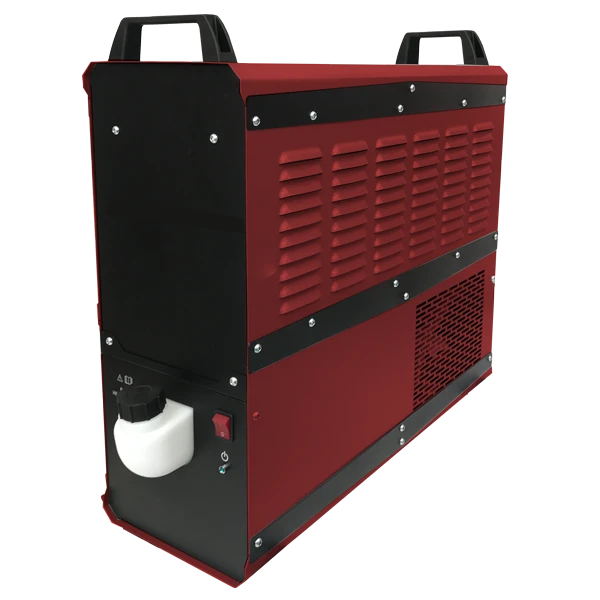

power source, liquid cooling unit bjo mig, remote wire feeder upp, connection cable package, welding torch, ground cable

Load Duration (LL)

100 %

Type of welding voltage regulation

smooth

AC mains supply voltage

300...500 V

Type of welding current

permanent

Maximum welding current

500 A

Height

240 mm

Operating modes (continuous/pulse)

pulsed and short-pulsed

EFFICIENCY

96 %

Degree of protection

ip 34

Current intensity at 100% SP

500 A

Cos ?

0,99

Insulation class

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
