Available for Import

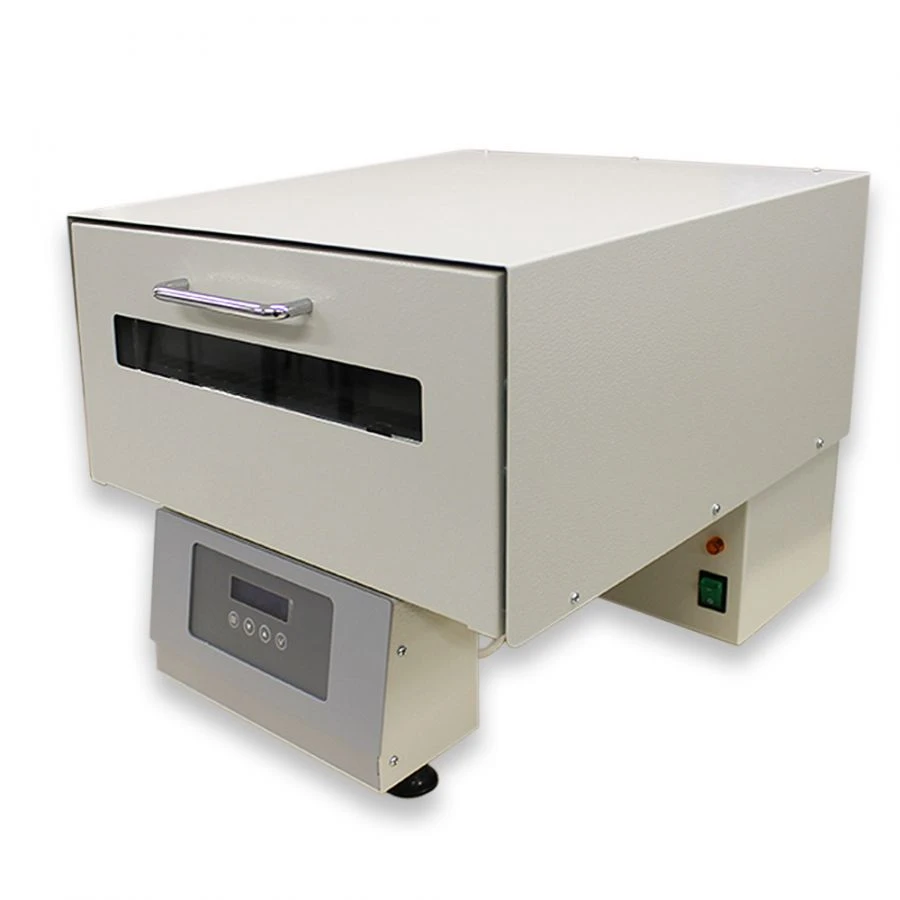

Infrared Convection Oven AПИК 2.2 for Efficient Small Batch Production
Manufacturer:
VEGA-PRO LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
convection-infrared table-top chamber oven for low-volume and pilot production. With the ability to work on lead-free technology and soldering in an inert environment;
45 programmable soldering and drying profiles;
PC connection for soldering process documentation and software updates;
working area size up to 300×310 mm, height of components up to 30 mm;
220 V single-phase power supply;
compact design, improved layout;
built-in Wi-Fi module for external control from an Andriod tablet.
45 programmable soldering and drying profiles;
PC connection for soldering process documentation and software updates;
working area size up to 300×310 mm, height of components up to 30 mm;
220 V single-phase power supply;
compact design, improved layout;
built-in Wi-Fi module for external control from an Andriod tablet.
Specifications
Maximum overall dimensions of printed circuit board
300×310 mm
Number of work programs (Standard/ Accelerated/Drying)
15/15/15
Heating temperature
260 °C
Temperature setting step
1 °C
Heating rate
10...30 °C/min
Heating speed setting step
1 °C/min
Drying time
0...60
Flux activation time
0...300
Solder melting time
0...99
Range over Wi-Fi wireless interface
3 m
Supply mains voltage
220 V
Frequency
SBVVBG
Current
14 A
Width
445 mm
Depth
490 mm
Height
390 mm
Weight
25 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
