Infrared Flame Detector Spectron-210 for Effective Fire Safety Monitoring

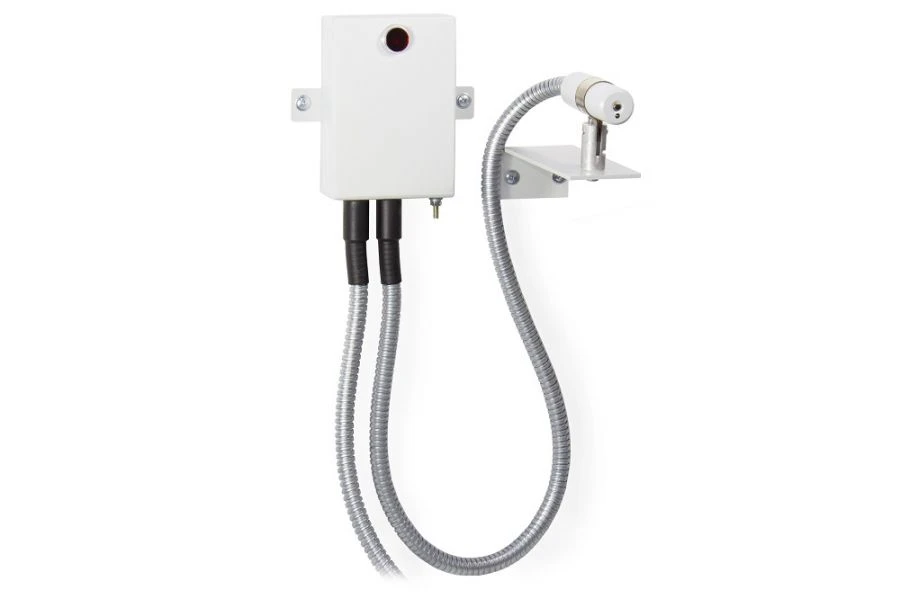

"Spektron-210" is a fire detector flame infrared (IR) range. Recommended for fire alarm systems in enclosed spaces without glazing (small area of glazing). The detector is made in a housing made of galvanised low-carbon steel and has a degree of protection IP68 from the environment.

"Spektron-210" operates in 2-wire alarm loops. The design of the device and the layout of the sensor, allows you to get the resulting diagram of detection of sources of ignition in the form of a 90 ° cone. There are 4 detector operation modes with different sensitivity thresholds and signal processing time to reduce the influence of interference when the detector identifies a fire or close location of the suspected ignition location.

In terms of sensitivity to the flame of test fires TP-5 and TP-6 the detector belongs to the first class according to GOST R 53325. The minimum response time of the detector to the test fires of TP-5 and TP-6 at a distance of 25 m is 6 s.
