Available for Import

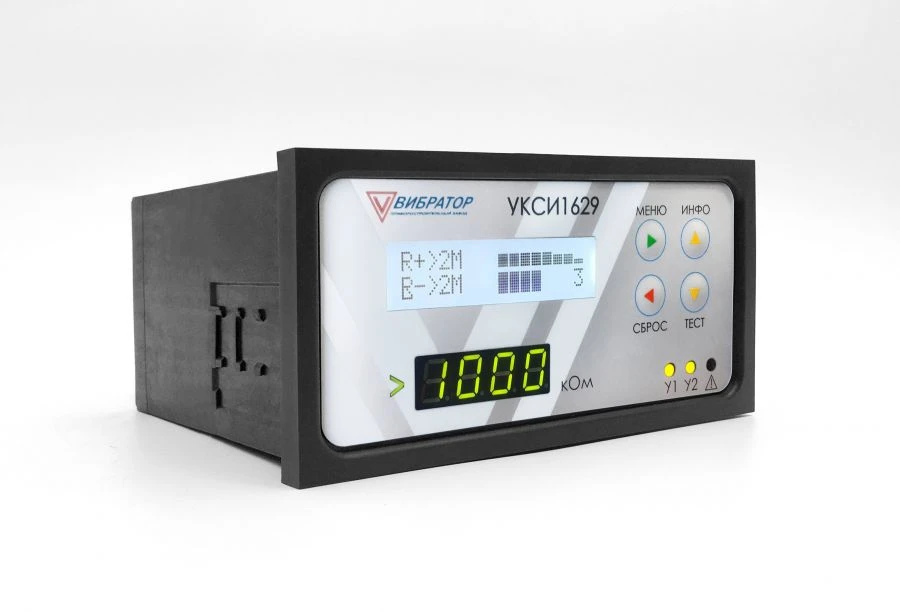

Insulation Resistance Monitoring Device UKSI1629 for Electrical Networks
Manufacturer:
VIBRATOR OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
UKSI1629 insulation resistance monitoring device is designed to measure and monitor the equivalent insulation resistance in AC electrical networks in the frequency range from 45 to 440 Hz with isolated neutral, as well as DC networks isolated from ground. UKSI1629 can be used to monitor both de-energised and energised single- and three-phase AC or DC networks.
Specifications
Measurement range of electrical resistance in AC networks
0...9999000 ohm
Measuring range of electrical resistance in DC networks, MOhm
0...1000000 ohm
Limits of permissible basic reduced error
5...10 %
Voltage range of the monitored AC mains network
0...690 V
DC monitored mains voltage range
24...400 V
Number of settings
2 pcs
Measurement cycle time at maximum capacity
80
Equivalent capacitance of the monitored network with respect to earth, alternating current
Up to 600 µF
Equivalent capacitance of the monitored network to ground, direct current
Up to 300 µF
Interface
RS-485 (Modbus RTU)
Analog output
0-20 mA, 4-20 mA
Degree of protection according to GOST 14254-2015
IP20, IP54
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
