IP Video Surveillance Switch CTC-185 for Reliable Network Setup

Security System Accessories

Manufacturer: OSNOVA BEZOPASNOSTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

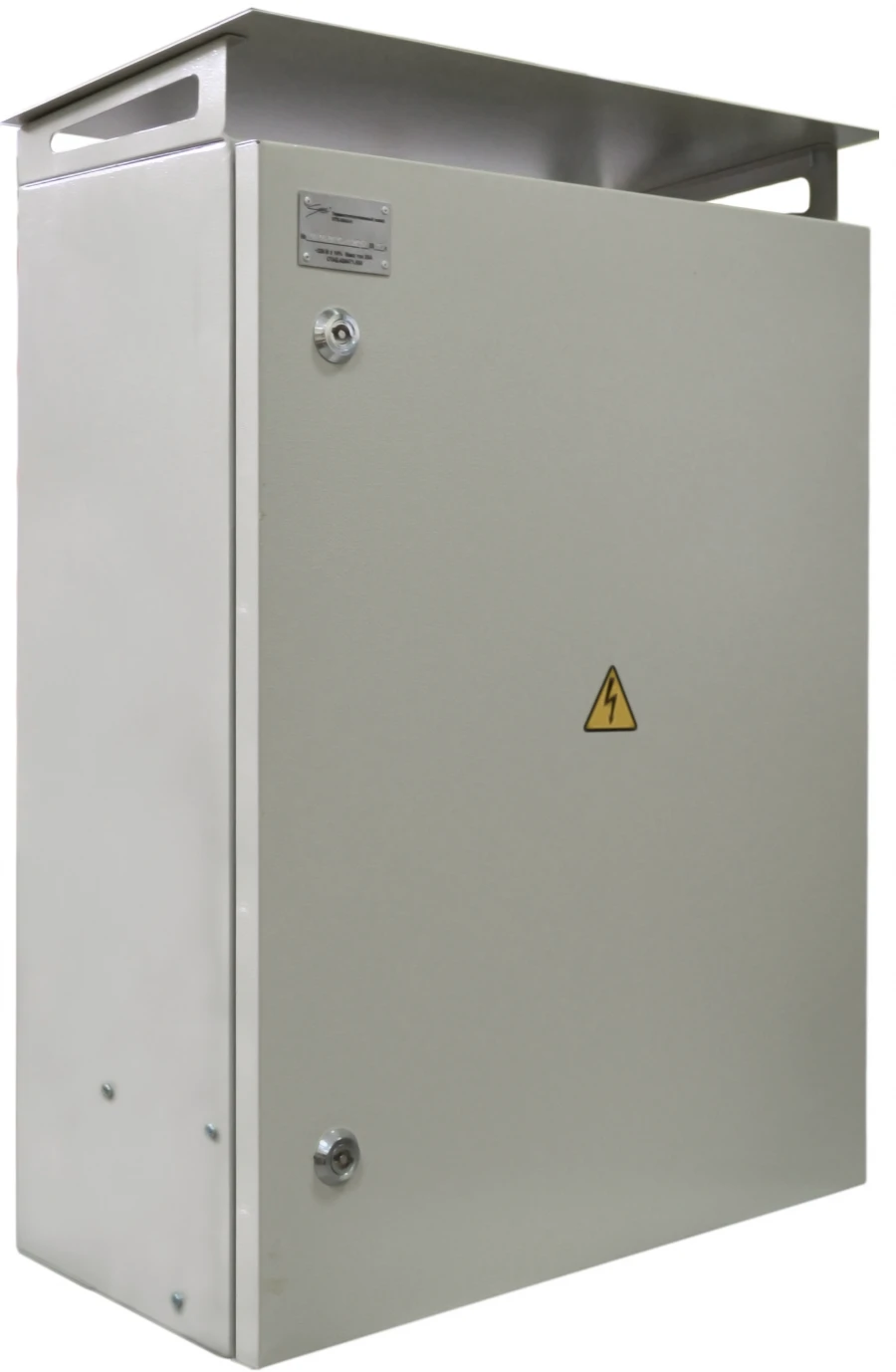

The switch STS-185 (hereinafter referred to as the switch) is designed for building IP-video surveillance networks. Structurally STS-185 is made in a metal cabinet and is a multifunctional Gigabit managed switch with built-in uninterruptible power supply with a function of heating the battery in cold weather, optical cross and PoE+ support. The switch is equipped with 10 Gigabit Ethernet ports (10/100/1000Base-Tx), which comply with PoE IEEE 802.3af/at standards and automatically detect PoE devices to be connected. Each of the 10 ports can be connected to a PoE device with a power of up to 25W. The switch enclosure is equipped with a tamper switch, has an automatic differential current switch, cooling and heating system, with adjustable temperature by means of a temperature sensor.

Specifications

Operating frequency

1000

Communication interfaces

Ethernet 10/100/1000 Base-Tx, 1000 Base-X

"Hot" reservation of all workplaces

Number of loops of the object device

10 pcs

Possibility to customize the type of APM

Possibility to customize the service area of the APM

Automatic redundancy of all information received on the workstation

Security server protection class

IP66

Maximum number of alarm loops

10 pcs

Maximum number of two-way voice communication points

10 pcs

Maximum number of addressable alarm points

10 pcs

Maximum number of actuator control outputs

2 pcs

Maximum number of connected IP, AHD, TVI, CVI cameras

10 pcs

Maximum number of access points

10 pcs

Power consumption

380 W

Maintaining internally controlled temperature

0-50 °C

DC power supply voltage of the AC unit

12-24 V

AC power supply voltage of the temperature control system

220 V

Overall dimensions

590x420x265 mm

Weight, not more

17 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
