IPC Gridex II Control Device for Harsh Conditions

Available for Import

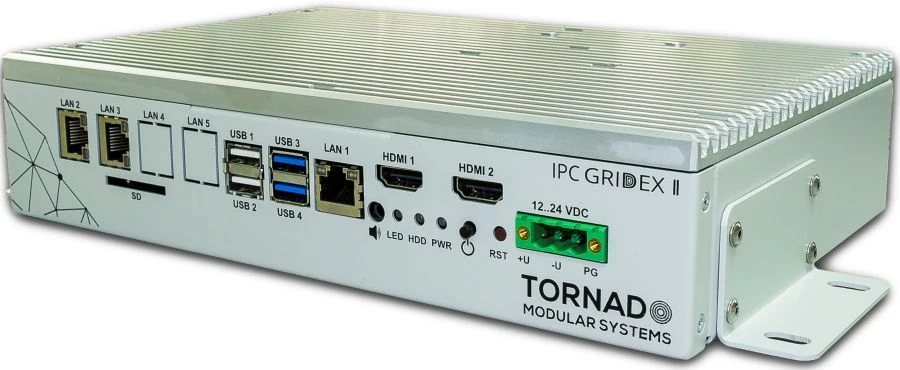

IPC Gridex II Control Device for Reliable Automation in Harsh Conditions

Automatic Control Devices

Manufacturer:Tornado Modular Systems LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

IPC Gridex II control devices are designed for various applications with "harsh" conditions and long service life, including the creation of automated process control systems (APCS) in various industries, as processor devices for the construction of automatic and automated monitoring and control systems, communication systems, emergency control and protection systems, etc. IPC Gridex II control devices have passive cooling, high reliability characteristics, have a long service life in harsh environmental and electromagnetic conditions, in a wide temperature range.

Specifications

Type SOM (System On Module)

COM-Express Compact Type 6

Processor type

Intel Core i3/i5/i7/Atom/Celeron, Elbrus and others with PCI-express support

RAM capacity

Up to 32G DDR3/4

Supported operating systems

Astra Linux, *Linux, Windows /7/8/10/11, Windows Embedded 7/8/10, QNX6

Number of HDMI ports

2 pcs

Number of Ethernet 100/1000 interfaces, up to

5 pcs

Form factor of Ethernet 100/1000 interfaces, pcs.

Up to 5 RJ-45 or 1 RJ-45 and up to 4 SFP"

Number of RS-232/RS-422/RS-485/GPIO interfaces, up to

6 pcs

Number of USB 2.0/3.0 ports, pcs.

4 on front panel, 1 inside housing

Number of SATA ports

2 pcs

SD card port

Armoured glass

Built-in Watch-Dog

Armoured glass

Status indication

Armoured glass

Ambient temperature (use Base)

0...60 °C

Ambient temperature (esp. Standart)

0...70 °C

Ambient temperature (esp. Industrial)

-20...70 °C

Ambient temperature (esp. Extended)

-40...80 °C

Time of operating time to failure, not less

87600

Service life, at least

15 year

Power supply voltage from external source, V

24V DC; 220V AC/DC

Power consumption, max.

Typical up to 25W, peak up to 40W

Mechanical design

Rack mount (19" 1U version); panel mount (11" version)

Overall dimensions

252x163x56 mm (11" version); 483x163x44 mm (19" 1U version)

Weight, not more

3 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
