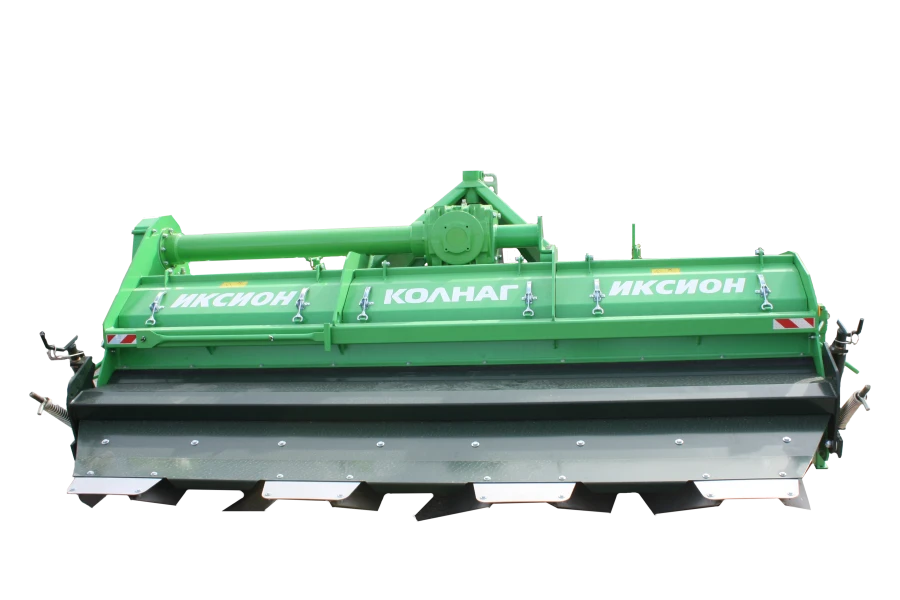

Ixion 4x75 Cultivator-Ridge Maker for Efficient Soil Tilling

Cultivator Machines

Manufacturer: KOLNAG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The cultivator is designed for: <ul> <li>- continuous milling of the soil with the formation of a flat surface of the field or with the formation of four ridges after the main cultivation of the soil, made by ploughs, as well as flat cutters and cheesels. It is allowed to cultivate on an unploughed field after the pass of the harrow to the depth of cultivation of the harrow. Depending on the soil condition and tractor power, the cultivation depth is up to 15 cm.</li> <li>loosening (milling) of soil in the inter-row width of 75cm and simultaneous formation of four high-volume ridges with a fine lumpy soil structure after planting potatoes until the emergence of sprouts 5-7cm high.

When using a cultivator, the soil before planting potatoes to the depth of milling cultivator, sufficient to form a ridge of the required height, should be cultivated with a milling or chisel cultivator.</li> </ul>The drive of the cultivator's working bodies is carried out through a chain side reducer. Aggregated with tractors with power from 80hp to 120hp. Optimum depth of ...

Specifications

Type of product according to PP RF 616

Cultivators

Number of working orans

1 pcs

Material of frame structures

Metal

Material of working elements

Metal

Type

Trailed

Width

3480 mm

Height

1340 mm

Length

2250 mm

Working width

3 m

Size of the protective zone in inter-row soil cultivation with rotary working tools cm max.

7 %

Damage to cultivated plants, max.

3 %

Cutting weeds in the cultivation area, in inter-row cultivation not less than:

80 %

Uniformity of working depth with rotary working tools (deviation from the set working depth) not more than

2 cm

Depth of tillage with rotary working tools (for inter-row tillage) to

5 cm

Width of comb on top base depending on modification

175 mm

Height of the formed ridge

300 mm

Tractor PTO drive

540

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
