Wide Laboratory Equipment Storage Cabinet for Efficient Organization

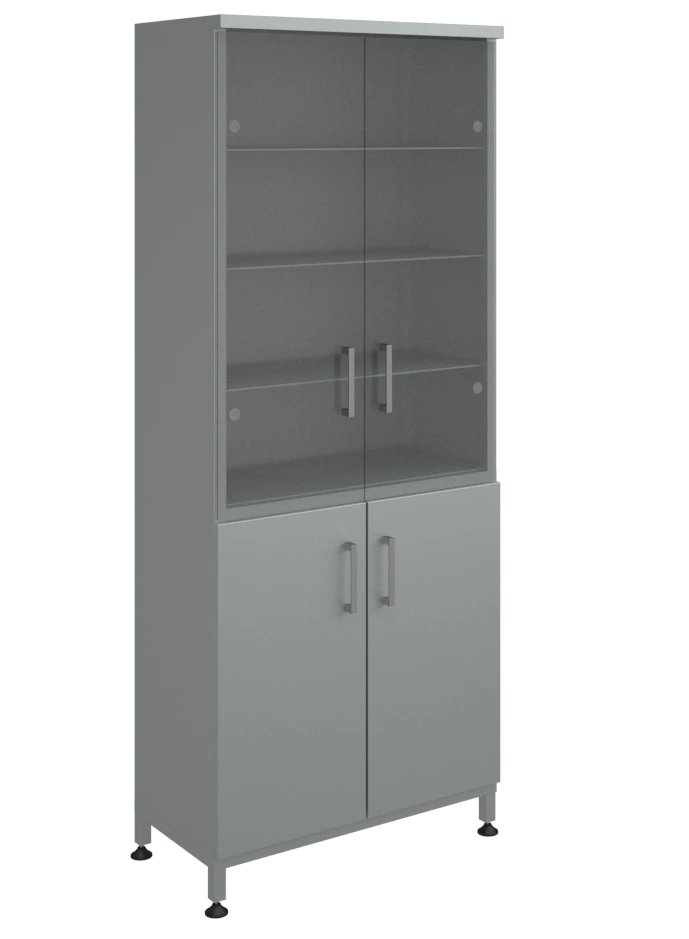

Size 800x400x1950mm.Made of pipe 30x30x1,5mm and sheet metal 1,0mm.The cabinet consists of:roof, 2 sides, 2 back walls, 4 doors (upper compartment glass, lower compartment metal), central shelf, 3 hinged shelves, bottom and frame. Made in the form of a box. The door is made in the form of a sandwich panel.

The door has a handle and a lock with a key. The central shelf is made of 1.0 mm sheet. The shelf is made of complex profile bending.

A bend is made in the front part of the workpiece. On the other three sides there are bends of 20mm each.5 holes of 30mm diameter are made in the workpiece for air intake when the hood is switched on.Also, shaped cut-outs are made in the workpiece for fixing with M6x20 screws for self-centring of the shelf.Bottom 800x400x30mm.It is made of cold-rolled sheet with thickness of 1.0mm. In the manufacture of the shelf is applied complex profile bending.

On all four sides are made kinks to increase rigidity.Frame 798x398x88mm.Made of pipe, cross section 30x30x1,5mm.
