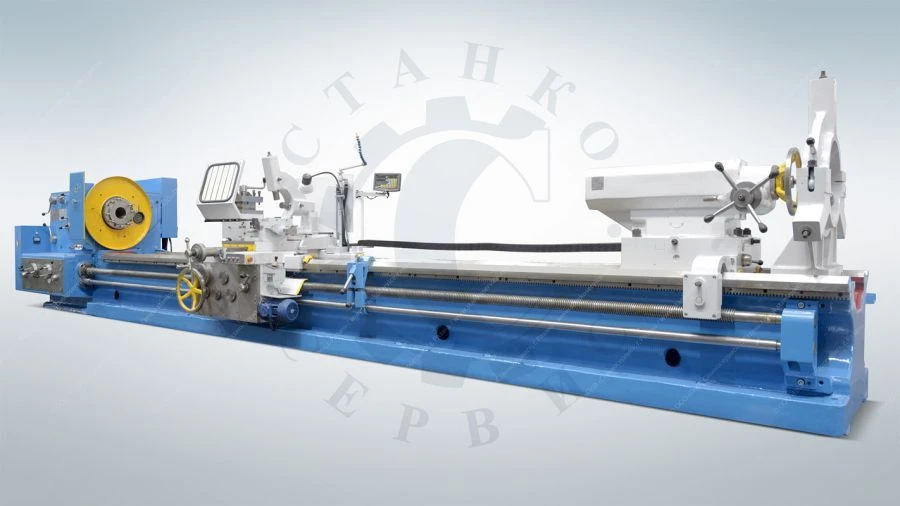

Lathe Machine for Turning and Thread Cutting 1Н65Ф1-18 - Ideal for Precision Engineering

Manual Metal Lathes

Manufacturer:STANKOSERVIS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

1880 mm

Width

2320 mm

Length

21410 mm

Step limits for machinable metric threads

1...96

Largest diameter of the workpiece to be mounted and machined above the slide

650 mm

Longest workpiece length

18000 mm

Spindle speed limits

5...500

Largest diameter of the workpiece to be mounted above the bed

1000 mm

Digital Display Unit (DDU)

Installed

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82

Machine weight

30300 kg

Main motion drive power

30 kW

Largest diameter of the workpiece to be machined above the bed

1000 mm

Maximum longitudinal movement of the slide

17600 mm

Maximum lateral movement of the slide

700 mm

Step limits for machinable inch threads

24-1/4 threads per 1 inch

Step limits for machinable modular threads

0.5-24 module

Highest torque on the spindle

9.5

Highest cutting force Pz

Height of the tool to be mounted

SBVVBG mm

Diameter of the cylindrical bore in the spindle

128 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
